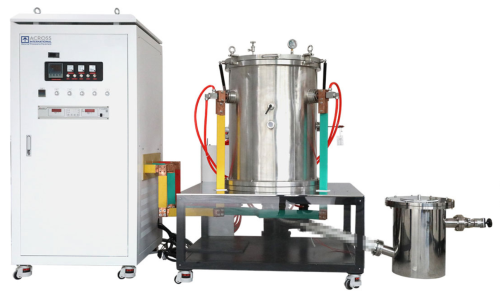

Vacuum Degreasing Sintering Furnace (Call for Pricing)

Price $0.00

CUSTOMIZE YOUR PRODUCT

Support
Have a Question? Ask our experts!
Call for Pricing


The Vacuum Degreasing Sintering Furnace by Across International is a state-of-the-art solution designed for high-temperature processing in controlled environments. This furnace integrates vacuum degreasing and sintering into a single unit, making it ideal for applications in powder metallurgy, ceramics, and advanced materials research. It features precise temperature control, uniform heating, and a robust vacuum system to eliminate contaminants and ensure optimal sintering conditions. With its advanced design, the furnace supports a wide range of materials and processes, offering exceptional performance, reliability, and energy efficiency. Perfect for industries requiring high-purity and high-density components, this furnace exemplifies innovation and quality in thermal processing technology.









Specifications

General Specifications

Description

Specification

Main Use

Vacuum drying and degassing of materials. The mechanical pump extracts gas from the cold trap, where the moisture or ice mixture condenses and adheres to the inner wall, achieving degassing.

Max Power Consumption

70KW (Furnace: 65KW + Diffusion Pump: 1.8KW + Mechanical Pump: 2.2KW)

Power Supply

Three-phase 480V 50/60Hz

Maximum Temperature

2100°C

Temperature Control

Yudian 50-segment programmable control
Eurotherm 3204

Heating Zone Dimensions (Internal Diameter)

Dia 250mm × 370mm

Effective Heating Zone Dimensions

Dia 200mm × 200mm

Chamber



Vacuum System

Description

Specification

Vacuum Pressure

< 5 × 10⁻³ Pa

Chamber Pressure

< 0.05 MPa

Pressure Increase Rate

< 4 Pa/hour

Over Temp Protection

Yes

Over Current Protection

Yes

Water Pressure Protection

Yes

Temperature Precision

+/- 1°C

Thermocouple Type

Molybdenum sheath tungsten-rhenium thermocouple

Temp Increase Rate

< 20°C/Min

Chamber Water Cooling

Yes

View Window Diameter

Dia 40mm



Water Chiller

Number of Heating Segments

15P

Power Supply

480V / 220V

Bellow

KF40 × 1000

Vacuum  Baffle Valves

KF40



Pump Specifications

1st Stage Pump Specifications

Description

Specification

Power Consumption

2.2KW

Voltage

480V

Rotational Speed

1450 rpm

Inlet Diameter

KF25 / KF40

Forepump Pumping Speed

16 L/s

Ultimate Pressure

5 × 10⁻¹ Pa

Turbo Pump TK200

Voltage

220V

Power Consumption

1800W

Inlet Port

DN200

Outlet Port

DN40

Oil Injection Capacity

0.55L

Pumping Speed (N₂)

2000 L/s



Composite Vacuum Gauge Spec

Composite Vacuum Gauge Model

ZDF

Power Supply

220V, 55W

Control Accuracy

± 1%

Vacuum Measurement Range

10⁻⁵ - 10⁵ Pa



Water Chiller (Options)

Power Supply (Main)

3PH-480V/60Hz

Cooling Capacity

35.9 × 10³ kcal/h

Total Input Power

15.3KW

Pump Head

50M

Water Tank Capacity

230L

External Dimensions

1000 × 1800 × 2100 mm

Net Weight

750KG



Overview
Call for Pricing


The Vacuum Degreasing Sintering Furnace by Across International is a state-of-the-art solution designed for high-temperature processing in controlled environments. This furnace integrates vacuum degreasing and sintering into a single unit, making it ideal for applications in powder metallurgy, ceramics, and advanced materials research. It features precise temperature control, uniform heating, and a robust vacuum system to eliminate contaminants and ensure optimal sintering conditions. With its advanced design, the furnace supports a wide range of materials and processes, offering exceptional performance, reliability, and energy efficiency. Perfect for industries requiring high-purity and high-density components, this furnace exemplifies innovation and quality in thermal processing technology.
