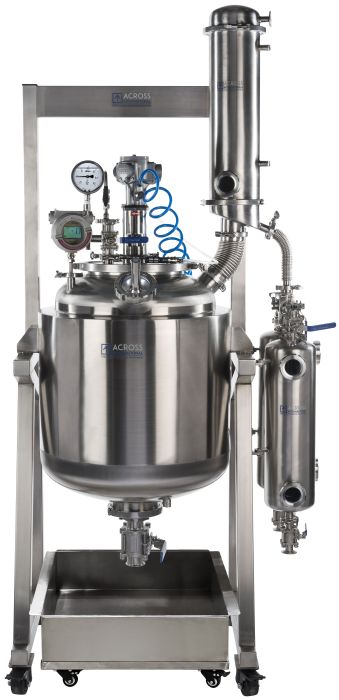

Ai Dual-Jacketed 50L 316L-Grade SST Reactor

Price $20,990.00

CUSTOMIZE YOUR PRODUCT

Collection tank

Options

Choose reactor

Stirrer/Impeller Type

Delivery liftgate service

Qty :

Wishlist

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description
Specifications
Standard Packages

Wishlist

Product Video

Videos

Description

Peer review model lead time: 4 weeks

Ai 316L Grade Stainless Steel Reactor Features

Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
Shell and tube heat exchanger for the best condensing results
ElectroPolished internal chamber; Greatly reduces surface roughness by leveling micro-peaks and valleys

Improved vacuum pressures, out-gassing rates, and pumping speed
Prolong equipment lifespan by reducing friction and wear
Much better sterilized and semiconductor grade surface
Essential for the food and pharmaceutical industries

Detachable condenser and collection tanks
Dual collection tanks with big sight glass allows you to drain without breaking vacuum
High drain port clearance for easy draining or added filtration
Large ports (top 12" bottom 6") allows easy chamber cleaning
Top placed vacuum port on condenser provides better flow and condensing results
No messy cable, with space saving integrated stirring motor controller
Heavy-duty stainless-steel frame with swivel casters
Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
Flexible bellow condenser connection reduces shipping damage
Electric motor and controller model is ETL certified to UL and CSA standards

CAUTION!

Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
Always leave ample fluid space in heater reservoir to allow fluid heat expansion

Impellar/Stirrer Options

	Name
Stirrer Type A	Anchor
Stirrer Type B	Piched Marine
Stirrer Type C	Pitched Blade
Stirrer Type D	Square Blade
Stirrer Type E	Anchor with Upper Pitched Blade
Stirrer Type F	Dual Pitched Blade
Stirrer Type G	Triple Pitched Blade
Stirrer Type H	Double Helix

Shell and Tube Heat Exchanger

Standard Quick-Change 316L Stainless Steel Propeller Agitator

Specifications

SPECIFICATIONS

Model	SR50
Electric stirring motor	220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP Rotation: 450 rpm max. (±8%) Starting torque: 3.0 N.m Rated torque: 1.54 N.m Built-in gearbox ratio: 3:1 to 180:1 Controller: Delta, UL listed
Pneumatic stirring motor	Power: 1/4 HP Rotation: 450 rpm max. (±8%) Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa) - Working temperature: -10C to +70C - For constant use: set rpm to 80% of maximum rpm - Motor lubricant Daphne Eponex EP-No. 1 Check/replenish/replace every 500 hours - Air lubricant Type: JIS K2213-1 (ISOVG32) Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32 Speed: 2-3 drops per minute - For safety purpose, detach compressed air supply when not in use, left un-attended or at night - Do not run motor un-loaded - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action. - Make sure exhaust port/hole is clear from any debris or blockage - Check every 2-3 days: Air Lubricant, Air Filter water drain
Port configuration	Vessel lid: 12" triclamp Center motor port: 3" triclamp Drain port: 6" triclamp Drain port on/off valve: 2" triclamp Vacuum port: 1.5" triclamp Condenser recirculating fluid port: 1/2" female NPT Vessel jacket recirculating fluid ports: 1" female NPT 50L/100L collection tanks * Lid: 6" tri-clamp, with 1.5" tri-clamp x 4 * Top of tank: 1.5" tri-clamp with sight glass x 2 * Drain port: 1.5" tri-clamp
Main vessel	Volume: 50L Minimum fill volume: 12.5L Material: 316L grade stainless steel Interior finish: ElectroPolished
Agitator	Structure: propeller, 3-blade, dual-layer (standard) Style: quick-change Material: 316L grade stainless steel Detachable length: 20 inches
Center fluid jacket	Volume: 14L Material: 304 grade stainless steel
Outer insulation jacket	Insulation material: perlite, 2", sealed Housing material: 304 grade stainless steel
Collection tank	Option 1: 10L x 2, 316L stainless steel, with manifold Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly) Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly)
Material	All wetted parts 316L grade stainless steel on main reactor body Rest of reactor in 304 grade stainless steel
Main Condenser	Style: shell and tube heat exchanger Condensing area: 0.89 m2
Pressure	Ultimate vacuum level: 1 Torr Maximum positive pressure (C1D1 peer reviewed to 15 psi) Main vessel: atmosphere Fluid jacket: 14 psi
Temperature range	-55°C to +250°C (-67°F to +482°F)
Temperature sensor/display	Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp
Sealing gasket	Food grade Viton
Main Mounting Frame	Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters
Drain port ground clearance	Drain port: 19.5 inches Drain valve: 14 inches
Unit/shipping weight	410 lbs (electric) 385 lbs( air)/ 676 (electric) \| 651( Air)
Unit/shipping dimensions	Full assembly – 38”x 29” x 76” (WxDxH) Shipping Dimensions – 46 x 35 x 77” (electric) \| 46 x 35 x 77” (WxDxH)
Compliance	n/a

Standard Packages

Standard package

Part description	Quantity	Part image
SR50 Base with vessel (splash bin shown in picture is optional at extra cost)	1
Electrical Motor with controller (pre-installed) or Pneumatic Motor	1
Compressed air regulator (color may vary) Comes only with pneumatic motor	1
Battery Operated Thermocouple (pre-installed)	1
Vacuum Gauge (pre-installed)	1
Condenser	1
Collection flask with two sight glasses (each sight glass comes with two gaskets)	2
1.5 “ tri clamp bellow (length )	1
3” tri clamp bellow (length )	1
1.5 “ 2-way tri-clamp ball valve (pre-installed)	5
1.5 “ 3-way tri-clamp ball valve (pre-installed)	1
2” tri-clamp ball valve	1
6” to 2” tri-clamp adapter (pre-installed)	1
90 degree 2” tri-clamp elbow (pre-installed)	1
90 degree 1.5” tri-clamp elbow(pre-installed)	2
1.5 “ tri clamp (pre-installed)	14
2 “ tri clamp (pre-installed)	1
6” tri clamp with bolts (pre-installed)	1
12” tri clamp with bolts (pre-installed)	1
1.5 “ tri clamp viton gasket (pre-installed)	14
2“ tri clamp viton gasket (pre-installed)	1
6” tri-clamp gasket (pre-installed)	1
12” tri-clamp gaskets (pre-installed)	1
User's manual	1
