SKU
SR100_UDP6_905

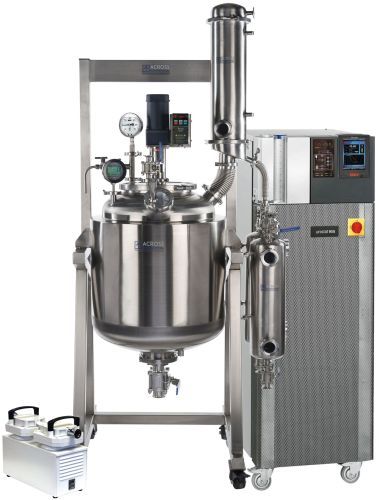

Winterization Package 100L Dual-Jacketed 316L SST Reactor

Price $150,075.00

CUSTOMIZE YOUR PRODUCT

Wishlist

Product Video

Videos





Ai 316L Grade Stainless Steel Reactor Features

  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger with 70 tubes for the best condensing results
  • ElectroPolished internal chamber
    • Greatly reduces surface roughness by leveling micro-peaks and valleys
    • Improved vacuum pressures, out-gassing rates, and pumping speed
    • Prolong equipment lifespan by reducing friction and wear
    • Much better sterilized and semiconductor grade surface
    • Essential for the food and pharmaceutical industries
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12" bottom 6") allows easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Built-in flashlight gives you a clear view inside the chamber
  • Positive/negative pressure gauge
  • Matte finish stainless steel
  • Customizable lid for various application
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Choice of bolted or pin clamp for various pressure applications
  • Flexible bellow condenser connection reduces shipping damage
  • Electric motor and controller model is ETL certified to UL and CSA standards
  • Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.



CAUTION!

  • Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion
  • Always keep system vacuum passage or drain valve open when heating up circulation jackets
  • Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits



Impellar/Stirrer Options





Name

Stirrer Type A

Anchor

Stirrer Type B

Piched Marine

Stirrer Type C

Pitched Blade

Stirrer Type D

Square Blade

Stirrer Type E

Anchor with Upper Pitched Blade

Stirrer Type F

Dual Pitched Blade

Stirrer Type G

Triple Pitched Blade

Stirrer Type H

Double Helix











Huber Unistat 905 adapters, tubing and fluid for SR100 stainless steel reactors for Winterization

  • P/N 6479 x 3 DW Therm (-90 to 200) 10L
  • P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
  • P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
  • P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)







Specifications

SPECIFICATIONS



 Model
 SR100
 Electric stirring motor



 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP
 Rotation: 450 rpm max. (±8%)
 Starting torque: 3.0 N.m
 Rated toruqe: 1.54 N.m
 Built-in gearbox ratio: 3:1 to 180:1
 Controller: Delta, UL listed
 Pneumatic stirring motor  - Power: 1/4 HP
 - Rotation: 450 rpm max. (±8%)
 - Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa)
 - Working temperature: -10C to +70C
 - For constant use: set rpm to 80% of maximum rpm
 - Motor lubricant
  • Daphne Eponex EP-No. 1
  • Check/replenish/replace every 500 hours
 - Air lubricant
  • Type: JIS K2213-1 (ISOVG32)
  • Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
  • Speed: 2-3 drops per minute
 - For safety purpose, detach compressed air supply when not in use, left un-attended or at night
 - Do not run motor un-loaded
 - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM
 - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.
 - Make sure exhaust port/hole is clear from any debris or blockage
 - Check every 2-3 days: Air Lubricant, Air Filter water drain
 Port configuration
 Lid: 6" triclamp
 Center motor port: 3" triclamp
 Drain port: 6" triclamp
 Drain port on/off valve: 2" triclamp
 Vacuum port: 1.5" triclamp
 Condenser recirculating fluid port: 1/2" female NPT
 Vessel jacket recirculating fluid ports: 1" female NPT

 Main vessel
 Volume: 100L
 Material: 316L grade stainless steel
 Interior finish: ElectroPolished
 Agitator  Structure: propeller, 3-blade, dual-layer (standard)
 Style: quick-change
 Material: 316L grade stainless steel
 Detachable length: 20 inches
 Center fluid jacket  Volume: 22L
 Material: 304 grade stainless steel
 Outer insulation jacket  Sealed
 Material: 304 grade stainless steel
 Collection tank  10L x 2
 Material
 All wetted parts 316L grade stainless steel on main reactor body
 Rest of reactor in 304 grade stainless steel

 Main Condenser

 Style: shell and tube heat exchanger
 Number of tubes: 70
 Condensing area: 0.89 m2
 Pressure

 Ultimate vacuum level: 1 Torr

 Temperature range

 -55°C to +250°C (-67°F to +482°F)

 Temperature sensor/display

 Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp
 Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp

 Sealing gasket

 Food grade Viton
 Main Mounting Frame  Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters
 Drain port ground clearance  Drain port: 19.5 inches
 Drain valve: 14 inches
 Shipping Weight (Unit)
 255 Lbs / 350 Lbs
 Shipping Dimensions  38 x 32 x 82" (WxDxH)
 Compliance  ETL tested to UL and CSA standards
 C1D1 peer review by PSI (optional)
Standard Packages

Standard package

SR100 Air or Electric Motor and Accessories

 Part description

 Quantity

Part image

 SR100 stainless steel reactor with electric motor
1 set
 2M KF25 flexible vacuum bellow 1 pc
 KF25 quick clamp and centering ring 2 sets
 KF25 to 1.5" Triclamp Adapter
1 pc
1.5" Tri-Clamp Gasket (Viton)  1 pc
1.5" Tri-Clamp Single Pin Clamp 1 pc
 Users manual 1 pc



Vacuum Pump with Accessories

 Part description

 Quantity

Part image

 ULVAC 220V UDP-6 6 cfm 6 torr 2-head diaphragm pump and vacuum hose

 KF25 Accessories Package
 KF25-FC x 1
 KF25-CR x 1
 FVB-25-10 x 1
1 set



Chiller with Accessories

 Part description

 Quantity

Part image

 Huber Unistat 905 with Pilot ONE
1 set
 Huber expansion tank, adapters, tubing and fluid
  P/N 6479 x 3    DW Therm (-90 to 200) 10L
  P/N 6461 x 2    90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
  P/N 6427 x 2    Hose MT-350-2-M30x1,5 (f)
  P/N 13255 x 2  M30 X 1.5 (male) to 1" NPT (male)
1 set



Overview





Ai 316L Grade Stainless Steel Reactor Features

  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger with 70 tubes for the best condensing results
  • ElectroPolished internal chamber
    • Greatly reduces surface roughness by leveling micro-peaks and valleys
    • Improved vacuum pressures, out-gassing rates, and pumping speed
    • Prolong equipment lifespan by reducing friction and wear
    • Much better sterilized and semiconductor grade surface
    • Essential for the food and pharmaceutical industries
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12" bottom 6") allows easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Built-in flashlight gives you a clear view inside the chamber
  • Positive/negative pressure gauge
  • Matte finish stainless steel
  • Customizable lid for various application
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Choice of bolted or pin clamp for various pressure applications
  • Flexible bellow condenser connection reduces shipping damage
  • Electric motor and controller model is ETL certified to UL and CSA standards
  • Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.



CAUTION!

  • Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion
  • Always keep system vacuum passage or drain valve open when heating up circulation jackets
  • Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits



Impellar/Stirrer Options





Name

Stirrer Type A

Anchor

Stirrer Type B

Piched Marine

Stirrer Type C

Pitched Blade

Stirrer Type D

Square Blade

Stirrer Type E

Anchor with Upper Pitched Blade

Stirrer Type F

Dual Pitched Blade

Stirrer Type G

Triple Pitched Blade

Stirrer Type H

Double Helix











Huber Unistat 905 adapters, tubing and fluid for SR100 stainless steel reactors for Winterization

  • P/N 6479 x 3 DW Therm (-90 to 200) 10L
  • P/N 6461 x 2 90 degree M30 X 1.5 (male) to M30 X 1.5 (female)
  • P/N 6427 x 2 Hose MT-350-2-M30x1,5 (f)
  • P/N 13255 x 2 M30 X 1.5 (male) to 1" NPT (male)
