SKU
SR100f

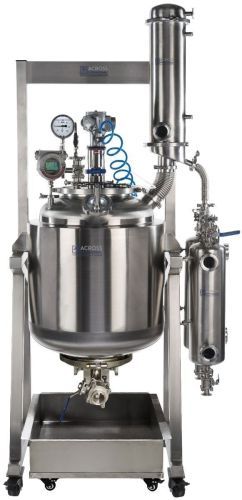

Ai ETL C1D1 Dual-Jacketed 100L 316L-Grade Stainless Steel Filter Reactor

Price $25,990.00

CUSTOMIZE YOUR PRODUCT

Wishlist

Product Video

Videos







Peer review model lead time: 4 weeks

Ai 316L Grade Stainless Steel Reactor Features

  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger with 70 tubes for the best condensing results
  • ElectroPolished internal chamber
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12” bottom 12”) allows for easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Built-in flashlight gives you a clear view inside the chamber
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Flexible bellow condenser connection reduces shipping damage
  • Electric motor and controller model is ETL certified to UL and CSA standards
  • Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.

CAUTION!

Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion







Shell and Tube Heat Exchanger





Standard Quick-Change 316L Stainless Steel Propeller Agitator




Specifications

SPECIFICATIONS



 Model
 SR100f
 Electric stirring motor



 220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP
 Rotation: 450 rpm max. (±8%)
 Starting torque: 3.0 N.m
 Rated torque: 1.54 N.m
 Built-in gearbox ratio: 3:1 to 180:1
 Controller: Delta, UL listed
 Pneumatic stirring motor  - Power: 1/4 HP
 - Rotation: 450 rpm max. (±8%)
 - Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa)
 - Working temperature: -10C to +70C
 - For constant use: set rpm to 80% of maximum rpm
 - Motor lubricant
  • Mobil Grease XHP 222, Lithium Complex, Blue, NLGI Grade 2
  • Check/replenish/replace every 500 hours
 - Air lubricant
  • Type: JIS K2213-1 (ISOVG32)
  • Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
  • Speed: 2-3 drops per minute
 - For safety purpose, detach compressed air supply when not in use, left un-attended or at night
 - Do not run motor un-loaded
 - Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM
 - Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.
 - Make sure exhaust port/hole is clear from any debris or blockage
 - Check every 2-3 days: Air Lubricant, Air Filter water drain
 Port configuration

 Lid: 12" triclamp
 Center motor port: 3" triclamp
 Drain port: 6" triclamp
 Drain port on/off valve: 2" triclamp
 Vacuum port: 1.5" triclamp
 Condenser recirculating fluid port: 1/2" female NPT
 Vessel jacket recirculating fluid ports: 1" female NPT
 50L/100L collection tanks
   * Standard lid: 6" tri-clamp, with 1.5" tri-clamp x 4

 Main vessel
 Volume: 100L
 Material: 316L grade stainless steel
 Interior finish: ElectroPolished
 Agitator  Structure: propeller, 3-blade, dual-layer (standard)
 Style: quick-change
 Material: 316L grade stainless steel
 Detachable length: 20 inches
 Center fluid jacket  Volume: 22L
 Material: 304 grade stainless steel
 Outer insulation jacket  Sealed
 Material: 304 grade stainless steel
 Collection tank  Option 1: 10L x 2, 316L stainless steel, with manifold
 Option 2: 50L x 1, 304 stainless steel, with dolly (15.5" diameter, 23.5" height, 30" with dolly)
 Option 3: 100L x 1, 304 stainless steel, with dolly (15.5" diameter, 43" height, 49.5" with dolly)
 Material
 All wetted parts 316L grade stainless steel on main reactor body
 Rest of reactor in 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis.

 Main Condenser

 Style: shell and tube heat exchanger
 Number of tubes: 70
 Condensing area: 0.89 m2
 Pressure

 Ultimate vacuum level: 1 Torr

 Temperature range

 -55°C to +250°C (-67°F to +482°F)

 Temperature sensor/display

 Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp
 Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp

 Sealing gasket

 Food grade Viton
 Main Mounting Frame  Heavy duty 2 x 2" 304 grade stainless steel, mounted on four casters
 Drain port ground clearance  Drain port: 19.5 inches
 Drain valve: 13 inches
 Shipping Weight (Unit)
 255 Lbs / 350 Lbs
 Shipping Dimensions
 46" x 37"x 80"
Assembled Dimensions
 30"x 29"x 72" (WxDxH) without condenser and receiving flasks
 36"x 29" x 81" (WxDxH) with condenser and receiving flasks
 Compliance  ETL tested to UL and CSA standards
 C1D1 peer review by PSI (optional)
Standard Packages

Standard package

 Part description

 Quantity

Part image

 SR100/SR200 Base with vessel (splash bin shown in picture is optional at extra cost)
1
 Electrical Motor with controller (pre-installed) or Pneumatic Motor
1
 Compressed air regulator (color may vary)
 Comes only with pneumatic motor
1
 Battery Operated Thermocouple (pre-installed) 1
 Vacuum Gauge (pre-installed) 1
 Condenser 1
 Collection flask with two sight glasses (each sight glass comes with two gaskets) 2
 1.5 “ tri clamp bellow (length ) 1
 3” tri clamp bellow (length ) 1
 1.5 “ 2-way tri-clamp ball valve (pre-installed) 5
 1.5 “ 3-way tri-clamp ball valve (pre-installed)
1
 2” tri-clamp ball valve 1
 Hold Down Ring 1
 Stainless steel filter plate 1
 Stainless steel filter bottom Base 1
 90 degree 2” tri-clamp elbow (pre-installed) 1
 90 degree 1.5” tri-clamp elbow(pre-installed) 1
 1.5 “ tri clamp (pre-installed) 15
 2 “ tri clamp (pre-installed) 2
 12” tri clamp with bolts (pre-installed) 2
 3” tri clamps (pre-installed) 3
 1.5 “ tri clamp viton gasket (pre-installed) 15
 2“ tri clamp viton gasket (pre-installed) 2
 12” tri-clamp gasket (pre-installed) 2
 3” tri-clamp gaskets (pre-installed) 3
 User's manual 1

Overview







Peer review model lead time: 4 weeks

Ai 316L Grade Stainless Steel Reactor Features

  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger with 70 tubes for the best condensing results
  • ElectroPolished internal chamber
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12” bottom 12”) allows for easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Built-in flashlight gives you a clear view inside the chamber
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Flexible bellow condenser connection reduces shipping damage
  • Electric motor and controller model is ETL certified to UL and CSA standards
  • Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.

CAUTION!

Across International is not responsible for caustic chemical related damage to the stainless steel reactor internal and external parts and components.
  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion







Shell and Tube Heat Exchanger





Standard Quick-Change 316L Stainless Steel Propeller Agitator
