SKU
AT75a-UL

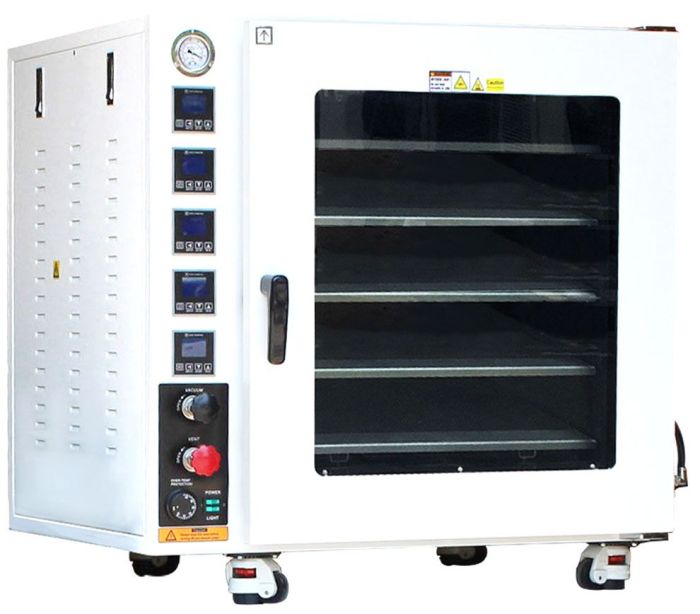

316L SST Optional 250C UL Certified 7.5 CF Vacuum Oven with 5 Heating Shelves

Price $8,990.00

CUSTOMIZE YOUR PRODUCT

Wishlist

Product Video

Videos

AT vacuum oven installation and calibration (English)



AT vacuum oven installation and calibration (Spanish)





SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Introducing the new UL certified 5-shelf 7.5 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is thesecondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these lab ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption..

Every one of our vacuum drying ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

  • UL certified
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
  • 4th gen low proportional gain temperature controllerskeep your oven temperature accurate.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside the oven.

Specifications

Vacuum oven specifications



 Electric
 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
  or
 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
 Heater  300 watts x 5, built into 5 aluminum shelves, for the fastest, most energy efficient
 and uniform heating
 Chamber
 Size: 22 x 23.5 x 25"
 Material: Stainless steel
 Capacity: 7.5 cubic feet
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 45 minutes
 Warm-up time to 480°F: 2 hours 15 minutes
 Vacuum
 Ultimate vacuum level: better than 500 microns/millitorrs
 (
may vary based on your altitude)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange x 1
 Vent port: KF25 flange x 1
 Vacuum pump: Sold separately
 Weight  Unit: 410 Lbs, shipping: 630 Lbs
 Dimensions (WxDxH)  Unit: 34.5 x 33 x 35.5"
 Shipping: 42 x 38 x 43"
 Shelves
 Heated shelves: 5 non-removable aluminum shelves, 22 x 23.25" (WxD) each
 Optional stackable aluminum shelves: 22 x 23.25 x 2.25" (WxDxH)
 Total area without stackable shelves: 512 x 5 = 18 sq ft or 2560 sq inch
 Total area with 5 stackable shelves: 512 x 10 = 36 sq ft or 5120 sq inch
 Distance between shelves (without stackable shelves): 4.5 inches
 Distance between shelves (with 5 stackable shelves): 2.25 inches
 Max. load capacity per shelf: 20 Lbs
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety
 Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial

 In-door lights  White LED
 Warranty  2 years
 Compliance  UL (E482564), CE
Standard Packages

Standard package



 Part description

 Quantity

Part image

 Ai UL certified 7.5 cu ft vacuum oven
1 pc

 KF25 quick clamp and centering ring 2 sets
 Inlet filter with KF25 connection 1 pc
 Led Light Cable 1 pc
 Users manual 1 pc

Overview





SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Introducing the new UL certified 5-shelf 7.5 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is thesecondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these lab ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption..

Every one of our vacuum drying ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

  • UL certified
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Five aluminum heating shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
  • 4th gen low proportional gain temperature controllerskeep your oven temperature accurate.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside the oven.
