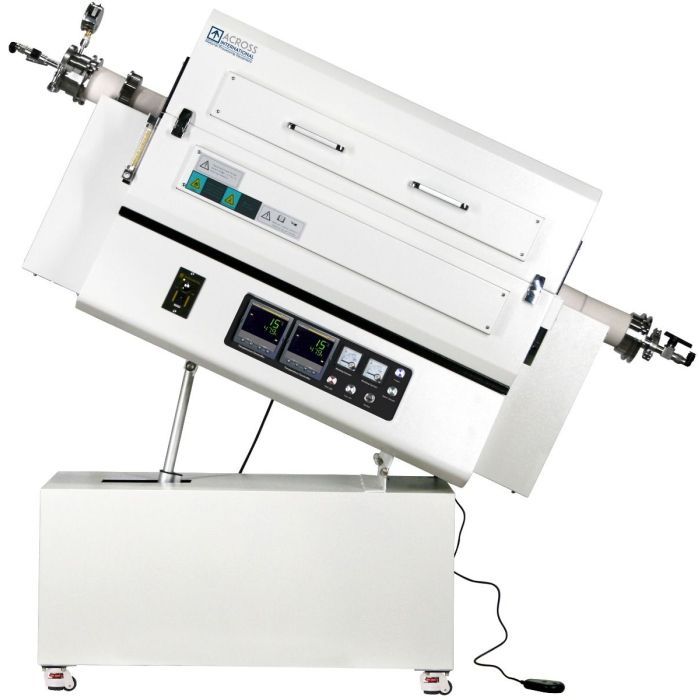

1500C 1-3 Zone Rotary & Tilting Top-Open Tube Furnace

SKU
RTF1500
Price: $11,990.00
Add to wishlist



RTF1500 series rotary and tilting top-open tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Eurotherm multi-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

  • Top-open furnace chamber for fast and easy tube access.
  • Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
  • Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
  • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
  • Built-in computer interface.
  • Long life type S thermocouple.

Safety

  • Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
  • Limit switch turns off furnace once top is open.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.



How to Install an Across International Tube Sealing Flange

Specifications

General Specifications

 Electrical requirements  208-240 volts 50/60Hz single phase
 Rotation speed & Inclination  1 to 25 rpm, 0 to 30°
 Tube material   High purity (99%) Al2O3 alumina
 Maximum / constant working temperature   1500°C  / 1400°C
 * 2 hours maximum continuous run time at maximum temperature
 Rated vacuum pressure  0.001 Pa / 0.0075 millitorr / 0.00001 mbar
 Rated positive pressure  0.02 MPa / 150 torr / 3 psi
 Refractory lining  Mitsubishi (Japan) high quality 1600 grade fiber alumina
 Heating element and thermocouple  Silicon carbide (SiC) / S-type
 Temperature controller  Eurotherm multi-segment digital controller, ±1°C step
 Max heating rate  5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)
 Heating zone length  15"
 Vacuum sealing flange kit  Stainless steel vacuum sealing flanges with one
 vacuum gauge, two valves and four thermal ceramic blocks.


  Model Comparison

 Zone  1-Zone  1-Zone  2-Zone  2-Zone  3-Zone  3-Zone
 Tube size (OD x L)  60mmx1.2m  80mmx1.2m  60mmx1.2m  80mmx1.2m  60mmx1.4m  80mmx1.4m
 Heating zone  15.4"  15.4"  7.5+7.5"  7.5+7.5"  7.5+7.5+7.5"  7.5+7.5+7.5"
 Maximum output  6 kW  6 kW  6 kW  6 kW  9 kW  9 kW
 Eurotherm controller  1 pc  1 pc  2 pcs  2 pcs  3 pcs  3 pcs
 Furnace dimensions (LxWxH)  23x15x41"  26x17x43"  23x15x41"  26x17x43"  27x19x45"  30x21x47"
 Shipping dimensions (LxWxH)  37x21x46"  37x21x46"  37x21x46"  37x21x46"  41x25x51"  41x25x51"
 Shipping weight (Lb)  485  550  485  550  530  630
Standard Packages

Standard Package



Part description





  Quantity





Part image



 RTF1500 rotary & tilting tube furnace  1 pc

 Stainless steel vacuum sealing flange set with
  pressure meter and flow meter
 1 set



 Alumina tube 1000mm length 1 pc

 Spare heating element 2 pcs

 Stainless steel hook  1 pc

 Tube thermal block 4 pcs

 Alumina crucible 5 pcs
 Thermal gloves  1 pair

 Spare fuse 2 pcs

 USB/RS485 computer interface kit  1 set

 Furnace and Shimaden controller manual 2 pcs
