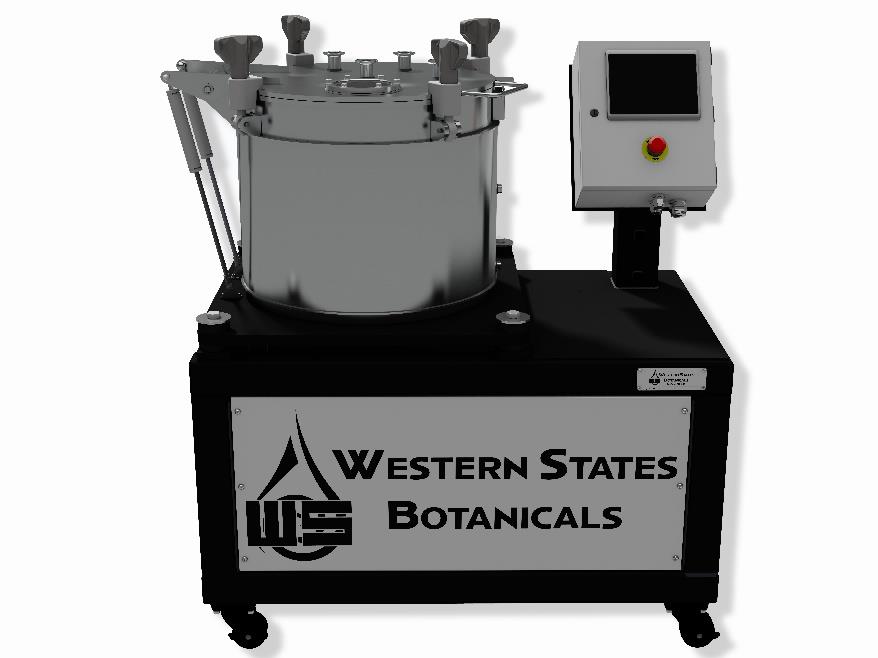

The WSB-15 Centrifuge is designed for the maximum extraction of cannabinoids and is suitable for low to mid-scale production volumes. This machine can handle up to 15 pounds per 10-to-20-minute cycle and boasts 98% cannabinoid removal.
General
- 1800 RPM, 828 Gs, 50 liter volumetric capacity, 15 lb maximum biomass load
- -40°F Minimum operating temperature, 104°F Maximum operating temperature
- (32°F to 104°F Ambient)
Curb
- 304L stainless steel construction with internal fluid jacket that covers the entire height of the curb.
- Vacuum/fluid jacket supplied with (2) 1-1/2” sanitary connections.
- Curb includes a 1-1/2” sanitary fitting for effluent outlet.
- Jacket volume 1.36 gallons (5.15L). Jacket pressure limits are 0-15 PSI
External Finish
- External stainless steel surfaces 39 Ra or better (Electropolish optional)
- Carbon steel surfaces to be powder coated
Internal Finish
- All internal surfaces stainless steel with 32 Ra finish or better (Electropolish optional)
PLC
- Allen-Bradley CompactLogix
- 24 VDC
- Ethernet, located in tethered drive enclosure
HMI
- 7” Panelview Plus 7
- 24 VDC
- ethernet, mounted in NEMA 4X enclosure on machine frame
- CL.1 DIV.2
Huber 1.5 meter tubing & fittings +$4,515.60
P/N 6386 x 2 1.5 meter -100C to +350C hose with insulation, MT-350-1,5-M30x1,5 $3,000.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
Huber 3 meter tubing & fittings +$5,915.60
P/N 6428 x 2 3 meter -100C to +350C hose with insulation, MT-350-3-M30x1,5 $4,400.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
Huber 1.5 meter tubing, fittings & fluid +$10,395.60
P/N 6386 x 2 1.5 meter -100C to +350C hose with insulation, MT-350-1,5-M30x1,5 $3,000.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
P/N 6479 x 3 DW-Therm heat transfer fluid M90.200.02 $5,880.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
Huber 3 meter tubing, fittings & fluid +$11,795.60
P/N 6428 x 2 3 meter -100C to +350C hose with insulation, MT-350-3-M30x1,5 $4,400.00
P/N 6448 x 2 M30x1,5 male thread to M30x1,5 male thread adapter $350.00
P/N 6461 x 2 90 M30x1,5 female thread to M30x1,5 male adapter $450.00
P/N 6456 x 2 M30x1,5 male thread to 3/4" NPT male thread adapter $560.00
P/N 6479 x 3 DW-Therm heat transfer fluid M90.200.02 $5,880.00
Tri-15-05NPT # 15167 x 2 Ai 1.5" One-Piece 316L SST Tri-Clamp to 1/2" Female NPT Adapter
Tri-15-ring-viton # 15507 x 2 Ai 1.5" Viton Sanitary Clamp Centering Ring (OD: 1.98” ID: 1.20”)
Tri-15-clamp # 14862 x 2 Ai 304 SST 1.5" Single Pin Standard Pressure Sanitary Tri-Clamp
