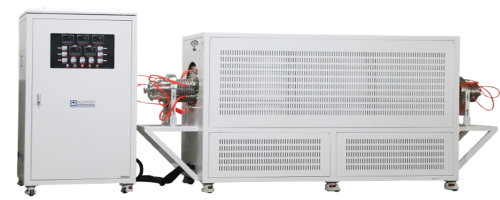

This is a large-diameter multi-zone tube furnace featuring a double-shell structure, with an inner silicon carbide (SiC) tube and an outer stainless steel tube. Inert gas is filled between the two layers, effectively preventing the gas from the inner tube from diffusing into the air.
The Tube Furnace with Silicon Carbide Tube from Across International is a high-performance heating solution designed for a wide range of thermal processing applications. Featuring a durable silicon carbide (SiC) heating element, this furnace delivers exceptional temperature uniformity, rapid heating rates, and long-lasting reliability, making it ideal for materials research, ceramics processing, and heat treatment. The robust construction ensures consistent performance even at extreme temperatures, while the precision temperature control system allows for accurate and repeatable results. Whether used in laboratories or industrial settings, this tube furnace offers a versatile and efficient solution for demanding thermal processes.
The chamber is made of high-quality alumina polycrystalline fiber.
The inner surface of the furnace chamber is coated with an imported high-temperature alumina coating (up to 1800°C), enhancing emissivity and ensuring a more uniform temperature field.
Valves and Flanges
Left side: Water-cooled flange with inlet and outlet ports, along with two needle valves and one ball valve for gas intake and exhaust.
Right side: KF25 vacuum extraction port, one needle valve, and one ball valve. This side also features a water-cooled flange.
Control Accuracy
+/- 1°C
Trigger
Phase-shift triggering
SCR (Silicon-Controlled Rectifier)
106/16E (Germany Semikron)
Maximum Temperature
1500°C
1600°C
Rated Temperature
1400°C
1500°C
Heating Rate
≤10°C/Min (modifiable upon request)
Recommended Heating Rate
≤5°C/Min
Thermocouple Type
S Type
B Type
Heating Zone Length
300+300+300+300+300mm
Outer Surface Temperature
≤45°C
Lid Protection System
When the furnace lid is opened, a relay automatically cuts off the main power supply to ensure user safety.
Vacuum System (Optional)
1. Single-stage pump
TW-1.5A
2. Two-stage pump
2XZ-2
3. VS-0.1 Vacuum System
Can achieve a vacuum level of 0.1Pa inside the tube furnace (comes with a resistance vacuum gauge for display).
4. VS High Vacuum System
A system consisting of molecular and mechanical pumps, capable of reaching a vacuum level of 10⁻³ Pa inside the tube furnace.
5. Constant Pressure Pump
Can control the internal tube pressure between -100.0KPa and 100.0KPa.
6. UK INFICON Capacitive Vacuum Gauge
Measurement range: 3.8x10⁻⁵ -1125 Torr. Can detect various gases, including mixed gases, with high accuracy and repeatability. Corrosion-resistant PCG554 version available.
