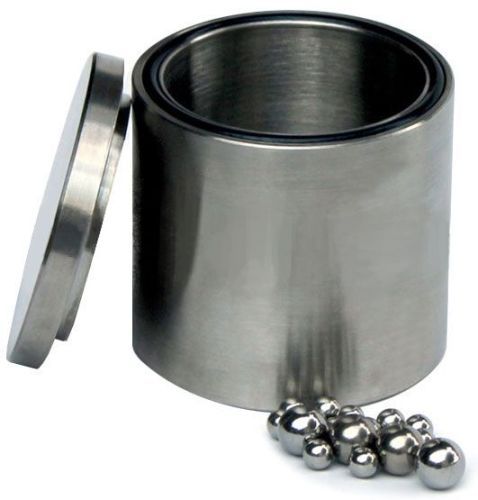

Polished stainless steel (grade 304) grinding jars for planetary ball mills. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed sizes of stainless steel grinding balls (see detail table below).
Grade 304 is the most widely used austenite steel, also known as 18/8 for its composition of 18% chromium and 8% nickel. 304 may be referred to as A2 stainless (not to be confused with A2 grade steel, also named Tool steel, a steel).
Polished stainless steel (grade 304) grinding jars for planetary ball mills. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed sizes of stainless steel grinding balls (see detail table below).
Grade 304 is the most widely used austenite steel, also known as 18/8 for its composition of 18% chromium and 8% nickel. 304 may be referred to as A2 stainless (not to be confused with A2 grade steel, also named Tool steel, a steel).
Specifications
Jar size
50 ml
100 ml
500 ml
1 L
Outer diameter (OD)
64 mm
64 mm
105 mm
135 mm
Inner diameter (ID)
42 mm
52 mm
90 mm
119 mm
Total height
57 mm
66 mm
103 mm
116 mm
Depth
39 mm
52 mm
88 mm
100 mm
Total weight
1.8 lbs.
2 lbs.
6 lbs.
13 lbs.
Ball configurations
50ml
100ml
500ml
1000ml
Ball size/qty (pcs)
6mm
50
100
500
1000
10mm
8
16
100
200
20mm
2
3
Jar configurations
Planetary Ball Mill
Capacity
Compatible Non-Vacuum Jars
Compatible Vacuum Jars
Quantity
PQ-N04
0.4L
50ml - 100ml
50ml
4
PQ-N2
2L
250ml - 500ml
100ml - 250ml
4
PQ-N4
4L
500ml - 1000ml
250ml - 500ml
4
Tolerance: +/- 2-3 mm
