SKU
SolventlessIceWater

Solventless Mesclatore - Ice Water Extraction System Deluxe Turnkey Configuration

Price $34,000.00

CUSTOMIZE YOUR PRODUCT

Wishlist

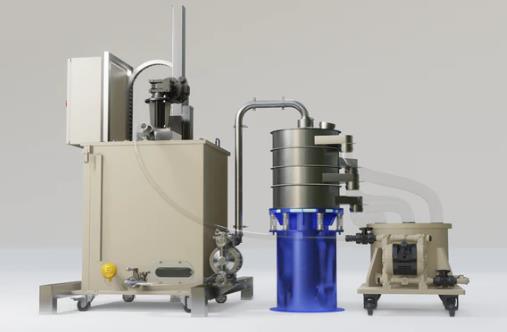

This optimized package utilizes the Solventless Mesclatore - Ice Water Extraction system, along with the Magna Agitatore Pro - Vibrating Screen, to create a complete ice water extraction system. The Agitatore Pro is made of 316L stainless steel and comes with several options. We have preconfigured it to include a pump cart, and pulsation dampeners, for ideal performance. Additional options can be found in the drop downs, including ultrasonic assisted extraction for increased yields, and recommended accessories kit 1 - 1X Mesclatore Trolley Zipper Liner, 1X Mesclatore Liner Hardware, 1X 20-gallon Ice Water Extraction Wash Bag Set of 8.

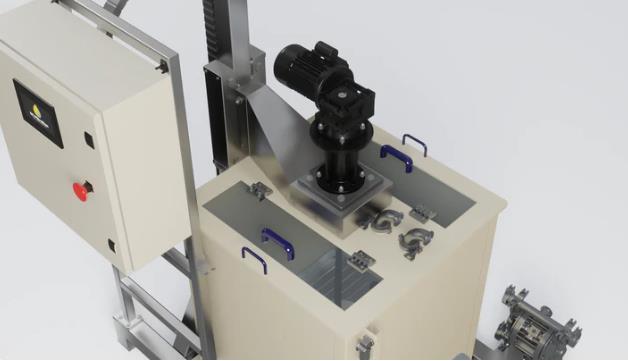

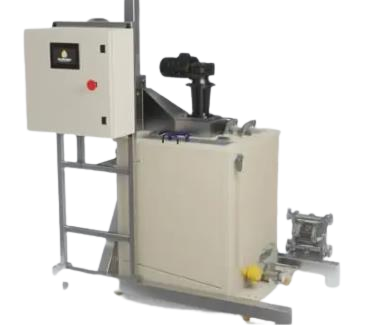

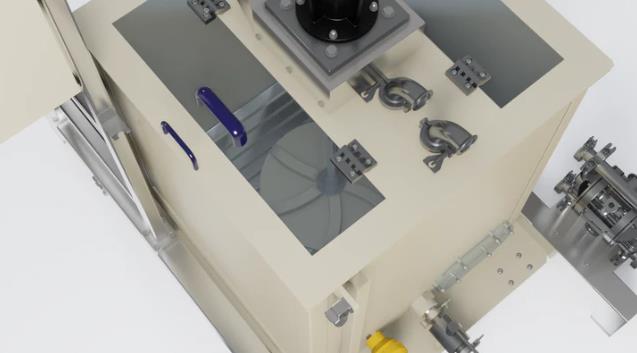

Mesclatore:

Turnkey industrial solventless solution, with swappable trolleys.  Ideal for agitation of biomass for production of solventless ice water extracts. Our solventless solution will automate and expand your lab’s production. This modular system lets you swap trolleys to quickly process serious volumes.

The computer-controlled system lets you create programs tailored to your needs to produce the quality you desire. You can agitate as gentle or as aggressive as you require.

As always, our systems are easy to use, inexpensive to operate, and least capital-intensive solutions at scale.

Agitator Only. Tank not included.



Where it excels:

  • Agitation of biomass to gently remove trichomes from flowers.
  • Loose biomass or bagged.
  • Perfect for medium and craft labs.



Features:

  • Insulated Trolley (Sold Separately)
  • Removable Lid
  • Low shear impeller
  • Mounted on casters
  • German Polypropylene Materials
  • Trichome AODD Transfer Pump (Included)
  • Motorized Lift
  • Fast Bagged Clean-out System



Advantages:

  • Labor savings - one operator needed
  • Easy to clean and disassemble
  • Insulated – Low Ice Usage
  • No Chiller Required
  • Built with FDA Food Grade Polypropylene
  • Large filtering reservoir
  • Programmable Touch Screen Controller
  • Gravity or Pump Drain/Transfer
  • Made in Italy











Agitatore Pro:

Have a solventless extraction machine but no reliable sieve solution? Look no further than our Rotary Vibrating Screen system.

Our sieve will help you optimize your trichome sieving needs and allow continuous extraction, improving quality and efficiency.

Our sieving solution can be integrated into any extraction system, not just the Mesclatore.

As always, our systems are easy to use, inexpensive to operate, and the least capital-intensive solutions at scale.





* Air compressor required for the operation of diaphragm pumps

Specifications

Specification



Model Solventless Mesclatore - Ice Water Extraction (SS 800)
Capacity 100 Gallons
Weight 350 kg
Recommended Compressor 5HP 17.9 CFM @ 100 PSI
Compressed Air Pressure From 25 to 100 PSI
Compressed Air Pressure Consumption 5.6-42.3 CFM
Noise Level 70 dB
Electrical 230V 60Hz 1 Phase
Operating Temperature 0 F to 160F
Maximum Flow Rate 29 GPM
Fresh Frozen Wet Capacity per batch 20,000 Grams
Overview

This optimized package utilizes the Solventless Mesclatore - Ice Water Extraction system, along with the Magna Agitatore Pro - Vibrating Screen, to create a complete ice water extraction system. The Agitatore Pro is made of 316L stainless steel and comes with several options. We have preconfigured it to include a pump cart, and pulsation dampeners, for ideal performance. Additional options can be found in the drop downs, including ultrasonic assisted extraction for increased yields, and recommended accessories kit 1 - 1X Mesclatore Trolley Zipper Liner, 1X Mesclatore Liner Hardware, 1X 20-gallon Ice Water Extraction Wash Bag Set of 8.

Mesclatore:

Turnkey industrial solventless solution, with swappable trolleys.  Ideal for agitation of biomass for production of solventless ice water extracts. Our solventless solution will automate and expand your lab’s production. This modular system lets you swap trolleys to quickly process serious volumes.

The computer-controlled system lets you create programs tailored to your needs to produce the quality you desire. You can agitate as gentle or as aggressive as you require.

As always, our systems are easy to use, inexpensive to operate, and least capital-intensive solutions at scale.

Agitator Only. Tank not included.



Where it excels:

  • Agitation of biomass to gently remove trichomes from flowers.
  • Loose biomass or bagged.
  • Perfect for medium and craft labs.



Features:

  • Insulated Trolley (Sold Separately)
  • Removable Lid
  • Low shear impeller
  • Mounted on casters
  • German Polypropylene Materials
  • Trichome AODD Transfer Pump (Included)
  • Motorized Lift
  • Fast Bagged Clean-out System



Advantages:

  • Labor savings - one operator needed
  • Easy to clean and disassemble
  • Insulated – Low Ice Usage
  • No Chiller Required
  • Built with FDA Food Grade Polypropylene
  • Large filtering reservoir
  • Programmable Touch Screen Controller
  • Gravity or Pump Drain/Transfer
  • Made in Italy











Agitatore Pro:

Have a solventless extraction machine but no reliable sieve solution? Look no further than our Rotary Vibrating Screen system.

Our sieve will help you optimize your trichome sieving needs and allow continuous extraction, improving quality and efficiency.

Our sieving solution can be integrated into any extraction system, not just the Mesclatore.

As always, our systems are easy to use, inexpensive to operate, and the least capital-intensive solutions at scale.





* Air compressor required for the operation of diaphragm pumps
