R.ServiceKit.20-50f:

R20f, 2R20f, R20f.ex, R50f, R50f:

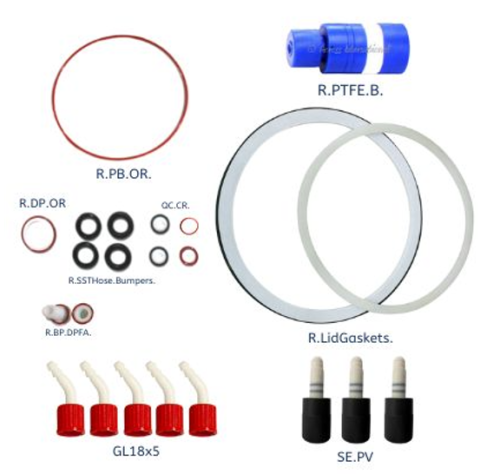

This service kit is made for use with Across International R20F to R50F glass filter reactors. The service kit is intended to replace the primary bearings and seals that may fail over time, as well as basic components that can be easily lost or broken. Items include PTE stir shaft bearing, GL 18 connectors, O-rings, centering rings, new PTFE open close valve, new hose bumpers, and new base plate filter seals and adapters.

Standard Packages

Standard Package

Item #	Description	QTY	Imagine
R.PTFE.B.10-50	PTFE Stir Shaft Bearing for R10,20,50 Glass Reactors	1
R.LidGaskets.10-50	PTFE Lid Gaskets Set for R10,20,50 Glass Reactor (Silicon Gasket - OD: 10.43", ID: 9.25") , (PTFE Gasket: OD: 10.43", ID: 8.66")	1
R.DP.OR	Drain Port O-ring for Ai Reactor (OD: 31.7 mm, ID: 22.1 mm)	1
GL18x5	Ai GL18 Connectors - Pack of 5	1
QC.CR.35.Viton	35# Viton Center Sealing Ring	2
R.SSTHose.Bumpers.10-200	Reactor stainless steel hoses black bumpers (pair)	2
SE.PV	PTFE Open/Close Valve	3
R.BP.DPFA.20-100f	Base Plate PTFE Drain Port Female Adapter (with oring)	1
R.BP.DPFA.OR.20-100f	Base Plate PTFE Drain Port Female Adapter O-ring (OD: 30mm)	1
R.BP.FMA.20-100f	Based Plate PTFE Flat to Male Adapter (with oring)	1
R.PB.OR.20-100f	PTFE Base Plate Top O-Ring for R20f, R50f and R100f (OD: 245mm)	1
