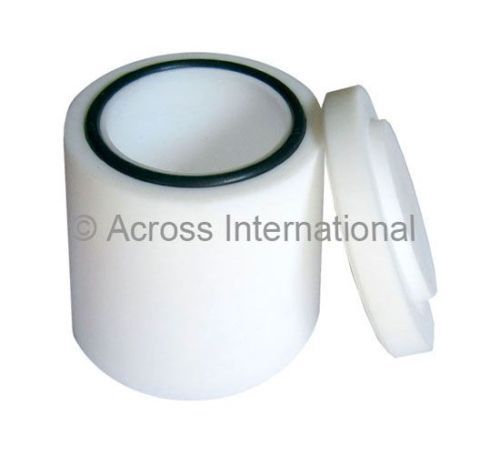

Highly non-sticky PTFE jars. These jars are used whenever small quantity of samples need to be grinded/milled without contamination. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed size agate grinding balls (see detail table below).
Highly non-sticky PTFE jars. These jars are used whenever small quantity of samples need to be grinded/milled without contamination. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed size agate grinding balls (see detail table below).
Ball configurations
50ml
100ml
250ml
500ml
1000ml
Ball size/qty (pcs)
6mm
50
100
250
500
1000
10mm
8
16
40
100
200
20mm
2
3
Jar configuration
Planetary Ball Mill
Capacity
Compatible Non-Vacuum Jars
Compatible Vacuum Jars
Quantity
PQ-N04
0.4L
50ml - 100ml
50ml
4
PQ-N2
2L
250ml - 500ml
100ml - 250ml
4
PQ-N4
4L
500ml - 1000ml
250ml - 500ml
4
Specifications
50ml
100ml
250 ml
500 ml
1L
Outer diameter (OD)
65 mm
68 mm
95 mm
115 mm
132 mm
Inner diameter (ID)
45 mm
52 mm
73 mm
90 mm
115 mm
Total height
68 mm
68 mm
93 mm
110 mm
138 mm
Depth
38 mm
44 mm
68 mm
80 mm
110 mm
Tolerance: +/- 2-3 mm
