Large, full-color touchscreen display with intuitive interface and operation in five languages (English, Spanish, French, German, Mandarin)
Cooling at ambient temperatures as high as 40°C
Choice of ultra-reliable Turbine or Positive Displacement pumps
Fluid temperature control range from -10° to 70°C
DynamicFilter™ self-cleaning filter system
Ultraviolet anti-biological light system
User-adjustable temperature, pressure, and flow rate alarms
Heating to 70°C, without additional heater for more energy-efficient operation
RS232, Status relay, dry contact; optional USB-B and remote probe ports
Cool Command™, WhisperCool®

Display	TFT LCD
Fluid Optimization/Specific Heat Tuning	Yes
Flow Rate Maximum (60Hz)	3.5 gpm/13.2 l/min
Languages Supported	Chinese, English, French, German, Spanish
Pump Type	Turbine
Temperature Stability F	±0.2°
Temperature Stability °C	±0.1°
Working Temperature Range °C	-10° to 70°
Working Temperature Range °F	14° to 158°
Nominal Cooling Capacity @ +20C (W)	2.9 kW
Reservoir Capacity (gallons)	1.1
Reservoir Capacity (liters)	4.2
Reservoir Drain	Yes
Reservoir Liquid Level Indicator	Yes
Reservoir/Tank Material	XLPE
Cleanable Air Filters	Yes
External Temperature Control Capability	Optional
Low Liquid Level Protection	Yes
Maximum Ambient Temperature °C	40°
Maximum Ambient Temperature °F	104°
Over-Temperature Protection / Failsafe Heater Control	Yes
Overall Dimensions (L x W x D) (cm)	66 x 38.1 x 55.4
Overall Dimensions (L x W x D) (inches)	26.0 x 15.0 x 21.8
Refrigerant	R513a
WhisperCool Environmental Control Technology	Yes
Environmental Compliance	Yes

Standard package

Part description	Quantity	Part image
PolyScience DuraChill CA10 -10C to +70C Chiller	1 pc
Power Cord	1 pc
Packing Kit (Includes Manual and other documents)	1 pc
Fitting Kit (See Below for Contents)	1 pc
½” MNPT x 5/8” Barb	2 pc
½” MNPT x ½” Barb	2 pc

Note: pricing is with turbine pump & pre-installed pressure by-pass for setting output pressure below normal 20psi minimum setting.

Key Features:

Large, full-color touchscreen display with intuitive interface and operation in five languages (English, Spanish, French, German, Mandarin)
Cooling at ambient temperatures as high as 40°C
Choice of ultra-reliable Turbine or Positive Displacement pumps
Fluid temperature control range from -10° to 70°C
DynamicFilter™ self-cleaning filter system
Ultraviolet anti-biological light system
User-adjustable temperature, pressure, and flow rate alarms
Heating to 70°C, without additional heater for more energy-efficient operation
RS232, Status relay, dry contact; optional USB-B and remote probe ports
Cool Command™, WhisperCool®

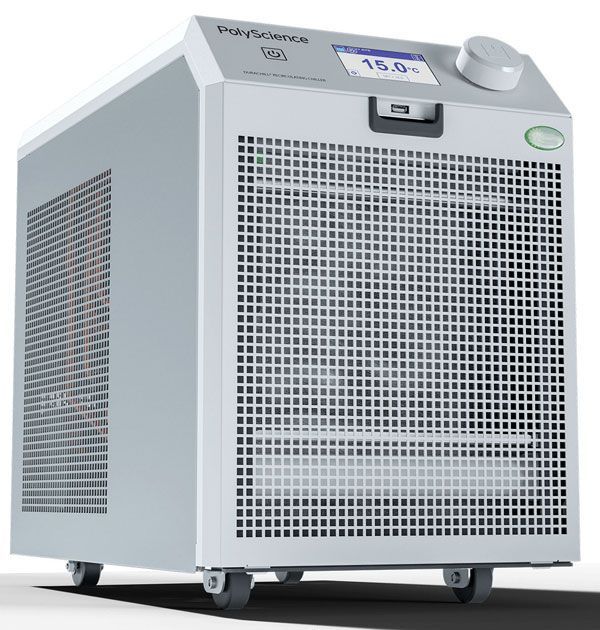

PolyScience DuraChill CA10 -10C to +70C Chiller
