SKU
huber-LCS80

Huber LCS 80 Chiller / Recirculating Cooler

Price $76,050.00

CUSTOMIZE YOUR PRODUCT

Wishlist

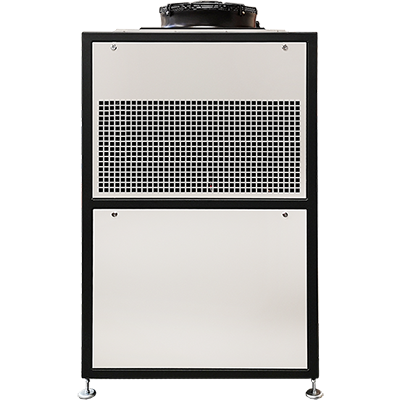

Huber LCS 80 Chiller / Recirculating Cooler

Performance Characteristics

The CS chillers expand the Huber product range with compact and highly affordable recirculating coolers. The Huber CS chillers combine cool and smart technology in one unit. For many applications, recirculating coolers further reduce water consumption and lower the operating costs. The investment pays itself off after a short time because of the water savings and the low purchase price. All the models are air-cooled and equipped with bypass, manometer and sensor to monitor the flow. The devices are characterized by the fact that they are easy to operate and maintenance-free. In addition, they have a low-noise construction and fan for quiet operation. Furthermore, the CS chillers are particularly suited for constant temperature control for laboratory applications, e.g. for cooling vacuum pumps, rotary evaporators, electron microscopy, AAS-devices, ICP-devices, extraction, distillation and many more.

Functions


  • High efficiency
  • Low operating costs
  • Extremely quiet and simple operation
  • Precise temperature control
  • Reduced water consumption
  • Low-noise construction
  • Environmentally-friendly, economic cooling solution
  • Powerful recirculation pump

Controller

The controller is particularly convincing with its simple operating unit and its multilingual menu navigation. The menu shows understandable text descriptions of warnings or fault conditions. In addition, the controller offers capacitive touch technique with acoustic confirmation. It has a bright O-LED display and an easy care and hygienic operating area.





Specifications

Specification

Temperature range -45...15 °C
Safety class I / NFL
Dimensions (W x D x H) 2015 x 1100 x 2000 mm
Weight, net 880 kg
Cooling capacity
15 20
-20 18
-40 8,5

°C

kW

Refrigeration machine air-cooled, CFC- and HCFC-free
Refrigerant 1st stage R449A (A1, H280)
Refrigerant quantity 1st stage 16 kg
Delivery capacity pressure pump max. 53 l/min; 4,7 bar
Pump connection G1 AG male
Interface digital RS232
Permissible ambient temperature -20...50 °C
Sound pressure level 77 dB(A)
Bath volume 37 l
Filling volume min. 40 l
Power supply 460V 3~ 60Hz
Current consumption max. 50 A
Fuse 3x60 A
