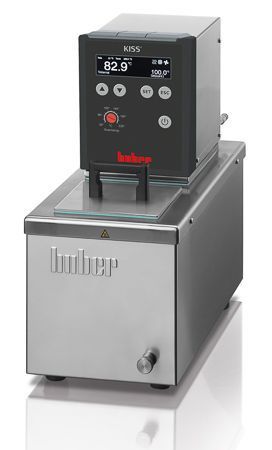

The new Huber KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.
Power: 200-240V 1~/2~50/60Hz
Huber KISS 205B features
KISS temperature controller
Bright, large OLED display
Simple operation with menu navigation
Simultaneous display of setpoint, Tmin, Tmax and actual temperature
Status displays for pump, cooling and heating
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
USB and RS232 interfaces
Autostart function for power failure
3 colour versions available: grey (standard), blue, red
The new Huber KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low level protection in line with Safty Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.
Power: 200-240V 1~/2~50/60Hz
Huber KISS 205B features
KISS temperature controller
Bright, large OLED display
Simple operation with menu navigation
Simultaneous display of setpoint, Tmin, Tmax and actual temperature
Status displays for pump, cooling and heating
Overtemperature and low level protection
Safety class III/FL (DIN 12876)
USB and RS232 interfaces
Autostart function for power failure
3 colour versions available: grey (standard), blue, red
General information & temperature controller
Temperature range
(-30)45...200C
Temperature stability
±0.05C
Temperature display
OLED Display
Alarm message
optical, acoustical
Controller
KISS
Safety class
III / FL
Protection class
IP20
Dimensions(W x D x H)
178 x 337 x 355mm|7.01 x 13.27 x 13.98inches
Weight
9kg|19.84pounds
Heating / cooling capacity
Heating capacity
1.5-2.1 kW
Circulation pump
Pressure pump max.
14 lpm;0.25 bar|3.7gpm;362.5psi
Suction pump max.
10.5 lpm;0.17 bar|27.74gpm;246.5psi
Pump connection
M16x1 AG male
Connections
Digital interface
USB, RS232
Operating data
Permissible ambient temp.
5...40C
Bath openingW x D / BD
105 x 90 / 150mm|4.13 x 3.54 / 5.91inches
Bath volume
5Liters|1.32gal
Power supply
200-240V 1~/2~ 50/60Hz
