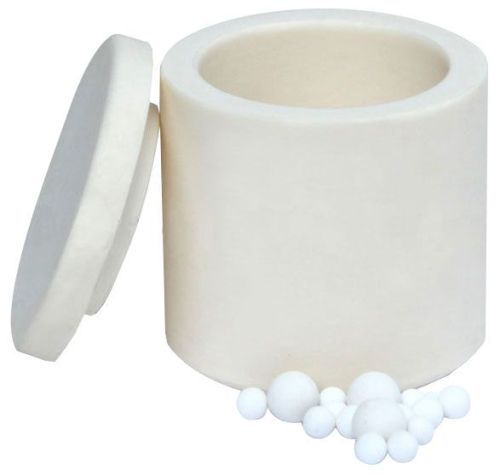

Alumina Ceramic Grinding Jar with Lid

Price $169.00

CUSTOMIZE YOUR PRODUCT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Wishlist

Description

Polished alumina ceramic jars. These jars are used whenever small quantity of samples needed to be grinded. Each jar set includes grinding jar, lid, rubber sealing gasket and different sizes of mixed alumina ceramic grinding balls (see detail table below).

Ball configurations

		50ml	100ml	500ml	1000ml
Ball size/qty (pcs)	6mm	50	100	500	1000
	10mm	8	16	100	200
	20mm			2	3

Jar configuration

Planetary Ball Mill	Capacity	Compatible Non-Vacuum Jars	Compatible Vacuum Jars	Quantity
PQ-N04	0.4L	50ml - 100ml	50ml	4
PQ-N2	2L	250ml - 500ml	100ml - 250ml	4
PQ-N4	4L	500ml - 1000ml	250ml - 500ml	4

Tolerance: +/- 2-3 mm

Specifications

Jar size	100 mL	500 mL	1L
Compatible ball mill	PQ-N04	PQ-N2, PQ-N4	PQ-N4
Outer diameter (OD)	68 mm	107 mm	131 mm
Inner diameter (ID)	52 mm	87 mm	115 mm
Total height	70 mm	110 mm	127 mm
Depth	52 mm	85 mm	107 mm
Al₂O₃ content	> 97%	> 97%	> 97%
Density	3.65 g/cm³	3.65 g/cm³	3.65 g/cm³
Hardness	9 mohs	9 mohs	9 mohs
Total weight	1.3 lbs.	4 lbs.	6 lbs.

Tolerance: +/- 2-3 mm
