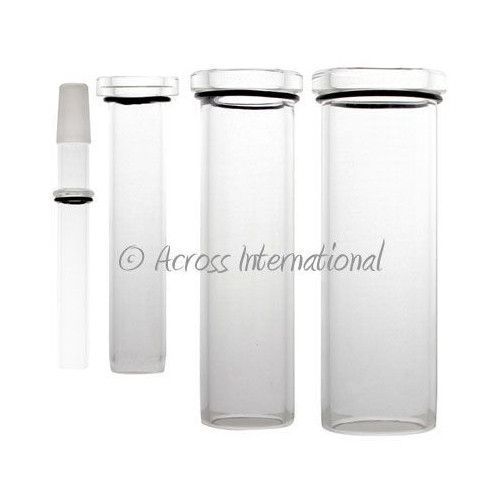

High quality glass vapor duct with sealing gasket for Ai SolventVap series rotary evaporators.
Ai 1st Gen small-neck 10L evaporation flask mouth dimensions : ID 3 inches, OD 3 3/4 inches
Glass material: high borosilicate glass 3.3
Dimensions:
SE.VD.SE05: OD (Center Tube) : 22mm ID (Condenser Side): 15.6 mm ID (Flask Side): 14.2 mm L: 194 mm
SE.VD-SE13: OD (Condenser Side): 39.7 mm OD (Flask Side): 28.7 mm ID: 21.7 mm L: 157 mm
SE.VD.SE26 (small neck): OD (Condenser Side): 59.1 mm OD (Flask Side): 49.6 mm ID: 39.1 mm L: 189 mm
SE.VD.SE26 (regular neck): OD (Condenser Side): 68.85 mm OD (Flask Side): 59.60 mm ID: 49 mm L: 190 mm
SE.VD 10-50L: OD(Condenser Side): 70.1 mm OD (Flask Side): 60.2 mm ID: 49.4 mm L: 188 mm
Tolerance: Tolerance: +/-1 mm
