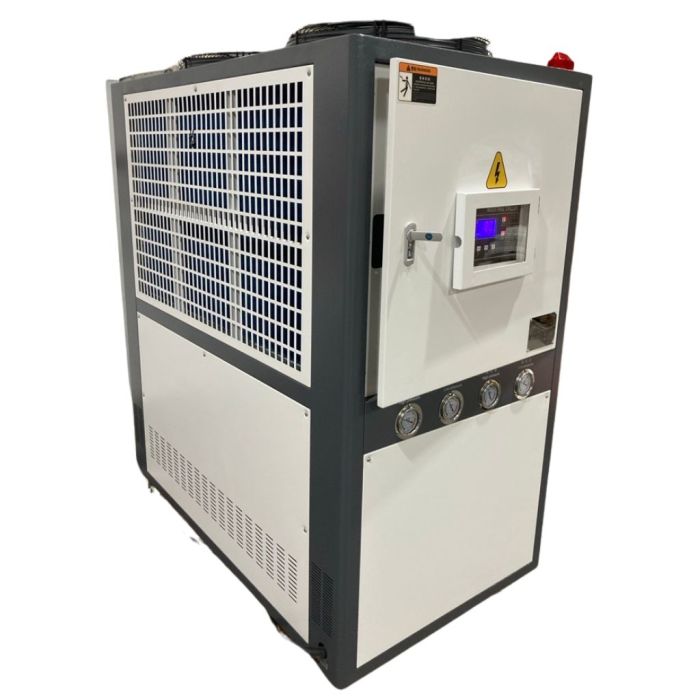

Across International WAC digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.

Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit

Specifications

Water Chiller	8P	12P	15P	20P	30P
Power Supply	3PH-480V/60HZ	3PH-480V/60HZ	3PH-480V/60HZ	3PH-480V/60HZ	3PH-480V/60HZ
Cooling capacity @7C	21.2 KW	32.3 KW	42.4 KW	57.2 KW	84.8 KW
Cooling Air Volume	8000 m³/h	12000 m³/h	15000 m³/h	20000 m³/h
Power	12KW	16KW	15.3 KW	20.7KW	30.2 KW
Water pumping distance	50M	50M	50M	50M	50M
Pump flow	12m³/h	15m³/h	20m³/h	20m³/h	20m³/h
Water tank capacity	130L	160L	230L	270L	350L
Evaporator	Water tank coil type/plate replacement + water tank
Compressor	Fully Enclosed Scroll Compressor
Condenser	High-efficiency copper tube sheathed aluminum fin type + low-noise external rotor fan
Refrigerant	R410A
Item Dimensions (inch)	29 x 53 x 56"	31 x 61 x 60"	71 x 40 x 83"	83 x 40 x 84"	96 x 48 x 84"
Net weight (lbs)	629	1048	1654	1896	2210
Warranty	1 year

10P Water Chiller Spec

Specification	Details
Refrigeration capacity (kcal/h)	22842
Refrigeration capacity (KW)	28.6
Total input power (KW)	13
Current (A)	34
Power supply	3 Phase, 220V, 50/60HZ
Refrigerant	R410A
Control method	Externally balanced thermal expansion valve
Compressor type	Fully enclosed scroll type (piston type)
Compressor power (KW)	8.5
Condenser type	High-efficiency copper tube sheathed aluminum fin type + low-noise external rotor fan
Cooling air volume (m³/h)	10000
Evaporator type	Water tank coil type
Chilled water volume (m³/h)	4.9
Water tank capacity (L)	160
Inlet/outlet pipe diameter	1-1/2"
Water pump power (KW)	3
Water pump lift (M)	40
Safety protection	Compressor overheating, overcurrent, high/low pressure, overtemperature, flow, phase sequence/loss, exhaust overheating, antifreeze protection
Unit Weight (KG)	450
Unit Size (mm)	1335 × 780 × 1640

Safety Protections:

Compressor overheating protection
Overcurrent protection
High-/low-pressure protection
Overtemperature protection
Flow protection
Phase/sequence protection
Exhaust overheating protection
