SKU
EV9

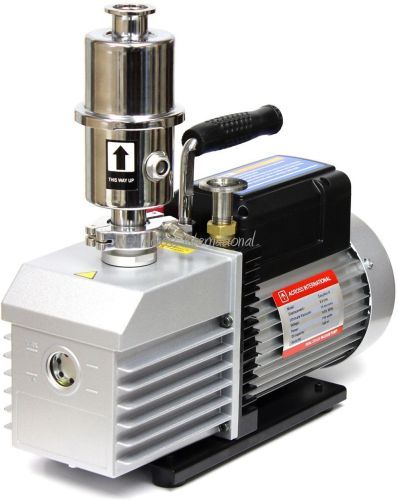

Ai EasyVac 9 cfm 2-Stage Vacuum Pump with Mist Filter ETL/CE

Price $790.00

CUSTOMIZE YOUR PRODUCT

Wishlist



Our EasyVac 9 CFM vacuum pumps are now 110V/220V 50/60Hz switchable and ETL and CE certified.

Ai EV9 are dual-stage high speed sliding-vane rotary compact vacuum pump with KF25 vacuum connector. Comes with all necessary fittings and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.

FreeKF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included.








Specifications

Specifications



 Electrical requirements
 110V/220V 50/60Hz switchable, single phase 750 watts (1 HP)
 Pumping rate
 9 cfm (110V 60Hz), 8 cfm (220V 50/60Hz)
 Vacuum level
 15 micron/millitorr
 Vacuum connection  KF25/NW25 flange
 Exhaust filter connection
 KF25/NW25 flange
 Oil volume  560 ml / 0.6 quart
 Motor rate  1720 rpm
 Working temperature  -5 to 60°C
 Pump dimensions (LxWxH)
 16.5 x 6 x 11", height is 16" with exhaust filter
 Shipping dimensions (LxWxH)
 20 x 9 x 13"
 Pump weight
 37 Lb
 Shipping weight  41 Lb
 Recommended oil  Ultragrade 19
 Compliance
 ETL tested to UL and CSA standards, CE
 Warranty  One year



Standard Packages

Standard package



 Part description

 Quantity

Part image

 Ai EasyVac-9 vacuum pump with exhaust oil mist filter
1 set

 Ai premium vacuum pump oil (300mL)
2 pcs
 KF25 stainless steel vacuum bellow (3 ft)
1 pc

 KF25 wing nut flange quick clamp
 2 pcs

 KF25 flange centering ring
 2 pcs

 Users manual 1 pc

Overview



Our EasyVac 9 CFM vacuum pumps are now 110V/220V 50/60Hz switchable and ETL and CE certified.

Ai EV9 are dual-stage high speed sliding-vane rotary compact vacuum pump with KF25 vacuum connector. Comes with all necessary fittings and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.

FreeKF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included.
