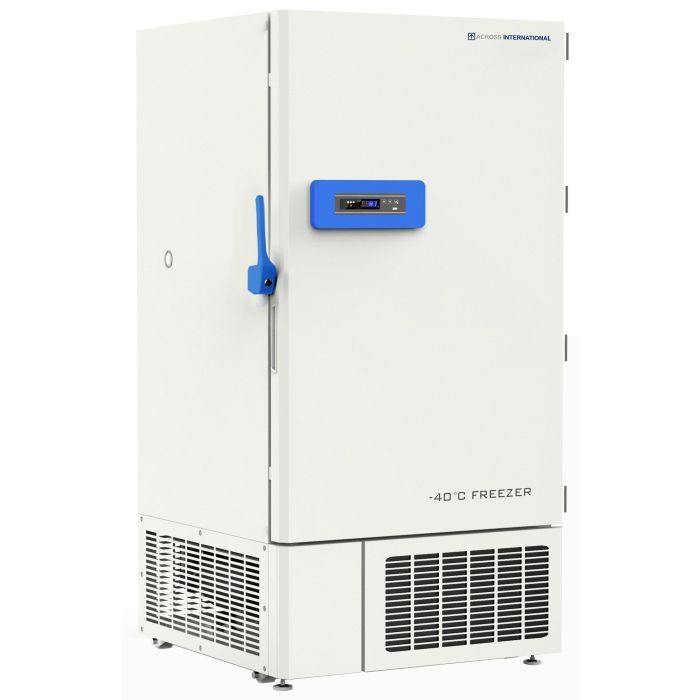

The Ai DeepFreeze series 27 Cu Ft -40C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Features
Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
All stainless steel interior for clean operation, durability, and ease of maintenance
Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Stainless steel interior for clean operation, durability, and ease of maintenance
Dual silicon sealing gaskets for ultra airtight operation
72-hour battery backup for controller
Built-in remote alarm and RS-485 port
USB interface for data export and storage
Extremely quiet and reliable
Environmentally friendly refrigerant
Use only RoSH compliant non-toxic components and materials
Built-in swivel casters with adjustable support that will secure the unit on uneven floor
Important!
Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.
Temperature range: -20°C to -40°C Time to reach -40°C: 4 hours
Compressor
Make: SECOP Number of compressor: two Style: parallel Refrigerant: R507
Chamber
Dimensions: 34 x 27.5 x 51" (WxDxH) Material: 304 stainless steel Capacity: 27.1 Cu Ft
Shelf
Come with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed Dimensions: 33 x 26 inches (compatible with G27) Additional shelf unit price: $150
Door and gasket
Inner door: four, each with one sealing gasket External door: one with dual sealing gasket, lock-able
Working environment
- Temperature: 16°C to 32°C - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
Battery backup system
72 hours (for controller display and alarms only)
Access port
Two, one on the side and one in the back, one inch diameter
Communication
Remote alarm 4-20mA transmitter, USB, RS-485
Built-in swivel casters
Four, with two leveling feet
Noise level
52 dBA
Unit/shipping weight & dimensions
635 Lbs / 866 Lbs 47.5 x 41.5 x 77.5" / 51 x 46 x 85" (WxDxH)
Safety
Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock
