SKU
VoPackage_x9

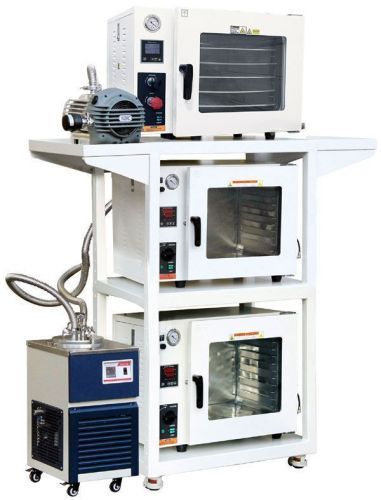

Ai 3-Oven 09/19 Package with Mobile Cart, Cold Trap & Pump -110V

Price $21,975.00

CUSTOMIZE YOUR PRODUCT

Wishlist

Product Video

Videos

Ai 3-Oven AT09/19 Turnkey Package Installation



AT vacuum oven installation and calibration (English)



AT vacuum oven installation and calibration (Spanish)





Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities. Each 0.9 cu ft oven comes with 4 pan shelves, each 1.9 cu ft oven comes with 5 pan shelves, standard.

Attention: Before initial use, run oven at 200C/400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

"AT09/AT19 UL" are UL certified, "AT09/19 ECO" are NOT UL or ETL certified.

Features

  • Adjustable gas back fill capability
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
  • Footprint: AT09/pump/cold trap 60x36x82", AT19/pump/cold trap 60x36x84" (LxWxH)
Standard Packages

Standard package

3-Oven Turnkey for AT09 or 19 with Edwards nXDS10iC

 Part description

 Quantity

Part image

 3-oven mobile cart for Ai 0.9/1.9 cu ft vacuum ovens 1 pc
 Ai 09 or 19 vacuum oven
3 pcs

 Ai T40x -40C cold trap package
1 set
 Edwards nXDS10iC 7.5 cfm dry scroll pump
1 set
 Users manual 1 pc


Additional Accessories for Turnkey

 Part description

 Quantity

Part image

 Flexible KF25 bellow - 2 meter 3 pcs
 Flexible KF25 bellow - 1 meter 1 pc
 KF25 4-way flange 1 pc
 KF25 quick clamp and centering ring 10 sets

Package fittings are subject to change with the selection of a different pump



Overview





Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities. Each 0.9 cu ft oven comes with 4 pan shelves, each 1.9 cu ft oven comes with 5 pan shelves, standard.

Attention: Before initial use, run oven at 200C/400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

"AT09/AT19 UL" are UL certified, "AT09/19 ECO" are NOT UL or ETL certified.

Features

  • Adjustable gas back fill capability
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
  • Footprint: AT09/pump/cold trap 60x36x82", AT19/pump/cold trap 60x36x84" (LxWxH)
