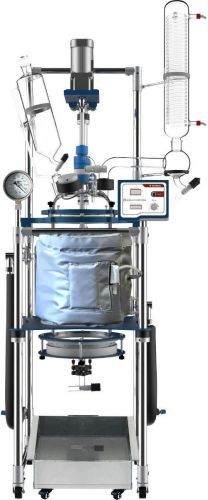

Ai 20L Single or Dual Jacketed Filter Glass Reactor

SKU
R20f
Price: $9,990.00
Add to wishlist



The Ai jacketed filter glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment, jacketed filter reactors can be used for single or multi-step reactions and filtrations in the same vessel, production and process scale peptide synthesis. Filter base eliminates material transfers and significantly reduces material losses.

Each Ai reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

  • ETL tested to UL and CSA standards, CE (optional)
  • Filter reactors for single or multi-step reactions and filtrations in the same vessel, they also eliminate material transfers and reduce losses.
  • Modular filter assembly can be easily detached for cleaning and filter paper replacement.

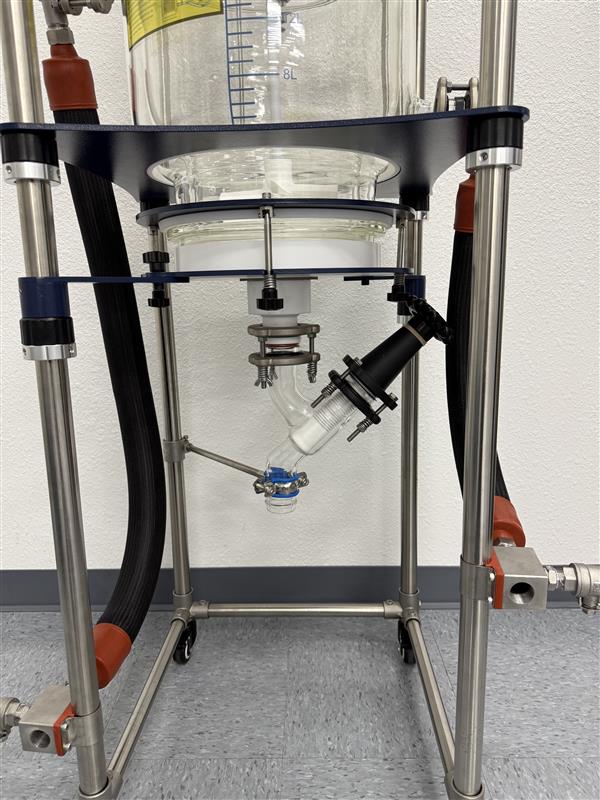

  • Center downward drain port with angled drain grooves allows easy material drainage.
  • All PTFE filter components ensure clean and long lifespan operations.
  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Wide range of temperature operations, from -110F to 400F.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.





Specifications

Specifications

Model R10 R20 R50 R100
Electrical requirements
110V 60Hz or 220V 50/60Hz, 1-Phase
Power 90W 140W 250W
Reaction glass vessel capacity
2.6 gallons (10L) 5.3 gallons (20L) 13 gallons (50L) 26 gallons (100L)
Cooling/heating jacket capacity
0.8 gallon (3L) 1.6 gallons (6L) 4.2 gallons (16L) 8 gallons (30L)
Filter plate OD of filter plate: 9 inches
Size of holes in the perforated PTFE support: 8 mm
Glass material High borosilicate glass 3.3
Rotation controller Digital controller with variable frequency drive
Rotation speed: 50 to 500 rpm
Maximum jacket pressure
4.4 psi or 0.03 MPa
Drain port ID of flange: 14 mm
Agitator Style: impeller
Material: 304 stainless steel with PTFE liner
Funnel Pressure equalizing
Vacuum gauge Mechanical
Glass vessel temperature range
-110F to 400F
Vacuum level < 700 torrs
Vacuum sealing Glass and PTFE
Drain port ground clearance
15 inches 13 inches 12.5 inches 13.5 inches
Unit dimensions (WxDxH) 18 x 26 x 78"
20 x 27 x 80"
26 x 33 x 85"
28 x 42 x 95"
Shipping dimensions 24 x 67 x 26" 24 x 75 x 31" 25 x 83 x 42" 26 x 88 x 45"
Shipping weight 240 Lbs 262 Lbs 330 Lbs 390 Lbs
Download Product brochure
Compliance ETL tested to UL and CSA standards, CE (optional)
Standard Packages

Standard package with optional parts



 Part description

 Quantity

Part image

 Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)
1 set
 Insulation jacket with openable viewing window 1 pc

 Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass

1 pc
 Glass material feeding funnel, lid, and PTFE open/close valve
1 set
 1" glass drain port with PTFE open/close valve
1 set
 Glass vacuum valve
1 set
 Stirring motor controller with material temperature display
1 pc
 Stirring motor and motor support
1 set
 Mechanical vacuum gauge with two 3/8" hose barb ports
1 pc
 Temperature probe with PTFE seal
1 pc
 PTFE stirring blades, stainless steel rod with PTFE liner
1 pc
 Insulated hose with drain port & open/close valve x 2
 Stainless steel hose barb adapter x 2

4 pcs

 PTFE sealing tape 1 pc
 PTFE stirring rod positioner/bearing kit
1 set
 Condenser dispenser connection kit 1 set
 Large opening material feeding port kit 1 set
 Bottom drain port sealing clamp  1 set
 Rubber-wrapped condenser dispenser support and condenser bracket 3 pcs
 Chilling fluid connector x 2, vacuum connector x 1
3 sets
 Allen key and backup inner hex screws 1 set
 Lower section filter assembly 1 set
 Users manual 1 pc
