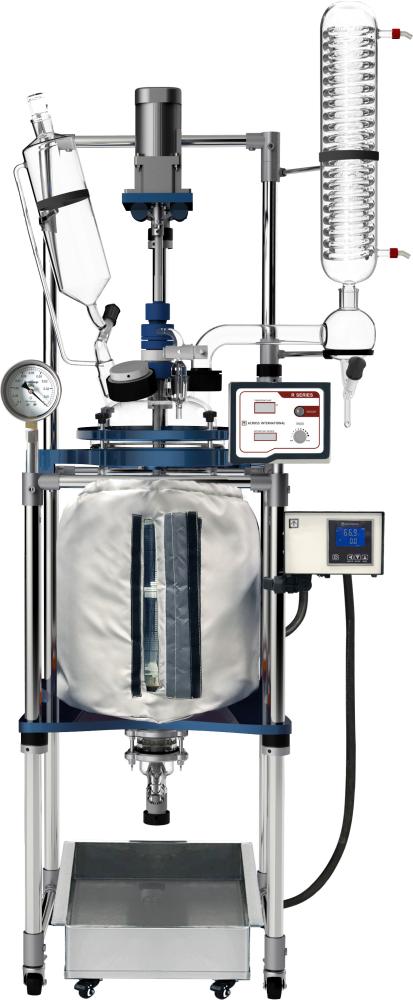

Ai 20L Non-Jacketed Glass Reactor with 200°C Heating Jacket

SKU
R20h
Price: $7,990.00
Add to wishlist



Ai R-series glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

  • No more expensive heating circulators, no more messy heat transfer fluid, adapters and tubing. Introduing the new Ai ReactorHeater 200C heating jacket with temperature controller.

    Ai 20L ReactorHeater with temp controller
      • 200C maximum temperature
      • 220V 50/60Hz 2,100 watts
      • Speedy heating
      • Ultra-thick insulation for minimum heat loss and very low outer jacket surface temperature
      • Built-in open/close viewing window
      • Easy installation, plug and play
      • Oven-temp protection, over-current protection
      • ETL tested to UL and CSA standards
      • Designed and made in the USA

  • Glass reactor ETL tested to UL and CSA standards (optional)
  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.







Specifications

Specifications

Model R20
Electrical requirements
110V or 220V, 50/60Hz 1-PH, 90W
Reaction glass vessel capacity
5.3 gallons (20L)
Glass material High borosilicate glass 3.3
Rotation controller Digital controller with variable frequency drive
Rotation speed: 50 to 500 rpm
Drain valve Flush seal design with large opening and flat flange clamp
Agitator Style: impeller
Material: 304 stainless steel with PTFE liner
Funnel Pressure equalizing
Vacuum gauge Mechanical
Glass vessel temperature range
-110F to 400F
Vacuum level < 700 torrs
Vacuum sealing Glass and PTFE
Drain port ground clearance
13 inches
Unit dimensions (WxDxH) 20 x 27 x 80"
Shipping dimensions 24 x 75 x 31"
Shipping weight 262 Lbs
Download Product brochure
Compliance ETL tested to UL and CSA standards (optional)
Warranty One year
Standard Packages

Standard package with all optional parts



 Part description

 Quantity

Part image

 Non-jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)
1 set
 Ai 200°C 20L heating jacket with PID controller - 220V
1 set

 Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass

1 pc
 Glass condenser dispenser with drain port and PTFE open/close valve
1 set
 Glass material feeding funnel, lid, and PTFE open/close valve
1 set
 1" glass drain port with PTFE open/close valve
1 set
 Glass vacuum valve
1 set
 Stirring motor controller with material temperature display
1 pc
 Stirring motor and motor support
1 set
 Mechanical vacuum gauge with two 3/8" hose barb ports
1 pc
 Temperature probe with PTFE seal
1 pc
 PTFE stirring blades, stainless steel rod with PTFE liner
1 pc
 PTFE sealing tape 1 pc
 PTFE stirring rod positioner/bearing kit
1 set
 Condenser dispenser connection kit 1 set
 Large opening material feeding port kit 1 set
 Bottom drain port sealing clamp  1 set
 Rubber-wrapped condenser dispenser support and condenser bracket 3 pcs
 Chilling fluid connector x 2, vacuum connector x 1
3 sets
 Allen key and backup inner hex screws 1 set
 Users manual 1 pc
