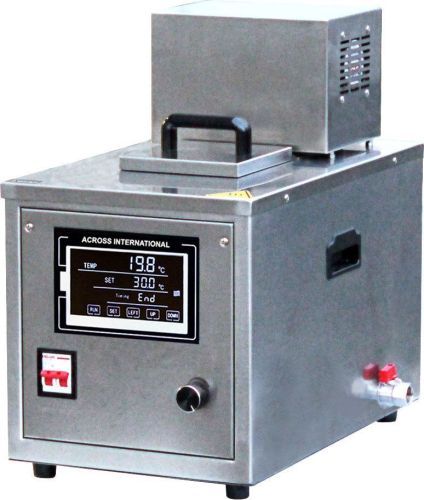

The new Ai H200 stainless steel series heated recirculators with 2,800 watts heater offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features
ETL tested to UL and CSA standards
Powerful 2,800 watts heater
Adjustable pumping speed up to 20 liters per minute
2nd generation 7" TFT touch screen controller
Front placed controller keeps all electronics away from the heat and expends lifespan of the controller
ANSI standard all stainless steel reservoir
All steel construction for durability
Small footprint saves valuable lab space
Comes with 250°C rated, heavy duty, flexible stainless tubing with insulation
Optional M16 male to 3/4" NPT adapters for Ai glass reactors $118.99
Pumping speed: 21 liters per minute, adjustable Maximum head: 16 feet or 5 meters Power: 100 watts
Reservoir
Material: Type 304 stainless steel Capacity: 7 liters or 1.8 gallons Thermo fluid connection: M16 x 2 Fluid drain port: 3/8" hose barb with on/off valve
Temperature controller
Type: Digital microprocessor PID controlled Display: 7" touch screen Display unit: Celsius °C Temperature step: 0.1°C Temperature accuracy: +/- 2°C Temperature range: Ambient to 200°C
Working environment
-15°C/5°F to 25°C/77°F, at <66% humidity
Unit/shipping dimensions
11.5 x 19 x 19" / 16 x 24 x 22" (WxDxH)
Unit/shipping weight
35 Lbs / 50 Lbs
Safety
Short circuit and ground protection Over-current protection Over-temperature protection Upper/lower temperature alarm protection
Warranty
One year
Compliance
UL 61010-1 :2012 Ed.3+R:29Apr2016 CSA C22.2#61010-1 :2012 Ed.3
