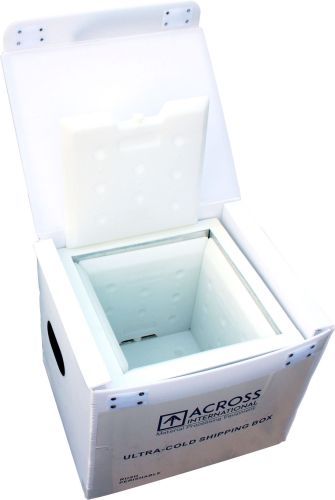

The Ai 2-8C shipping cube with rechargeable PCM is used to safely ship products with unique temperature constraints. Vacuum Insulated Panel (VIP) solid insulation maintains the integrity of your products within their desired temperature environment. These cubes are ideal for reducing shipping costs or for circumstances in which unexpected delays may occur.
Features
Comes with six cold pads filled with 2-8°C rechargeable PCM (Phase Change Material)
State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulation. VIP has a 0.004 w/m.K thermal conductivity rate that is less than 20% of traditional polyurethane foam, they are widely used in ultra-low (ULT) freezers, deep frozen shipping containers, and the aerospace industries.
Holds temperature for duration of 72 hours
Reusable and recyclable
Superior thermal protection in a convenient mid-size container
Great for shipping of high-value commercial & clinical trial products, research & development shipments, as well as pharmaceutical supplies
Year-round performance in extreme temperatures
Simplified ordering and inventory management
Cost-effective for single-use shipments
Great for projects requiring quick off the shelf solution for domestic expedited shipments or international shipments to both developed and undeveloped countries
Recommended SOP for Ai 2-8C and -25C thermal shipping box with PCM cold pads
Charging your PCM cold pads
2-8C: leave your PCM in a -18C freezer for 24 hours. Place PCM sideway, NOT upright, and leave 1 inch space between each PCM
-25C: leave your PCM in a -40C freezer for 24 hours. Place PCM sideway, NOT upright, and leave 1 inch space between each PCM
PCM is fully charged once the thermal fluid inside becomes solid
After removing from the freezer, leave PCM in room temperature for 15 minutes before use
Place one PCM in the bottom of the box, and then four PCM's alongside the inner walls of the box
Place your load into the box (empty space inside PCM will not affect duration)
Place your thermal data logger sensor, if required
Place the 6th PCM on top of your load
Close the VIP insulated cover and make sure it is tight
After 72 hours, replace all six PCM with new charged PCM
The Ai 2-8C shipping cube with rechargeable PCM is used to safely ship products with unique temperature constraints. Vacuum Insulated Panel (VIP) solid insulation maintains the integrity of your products within their desired temperature environment. These cubes are ideal for reducing shipping costs or for circumstances in which unexpected delays may occur.
Features
Comes with six cold pads filled with 2-8°C rechargeable PCM (Phase Change Material)
State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulation. VIP has a 0.004 w/m.K thermal conductivity rate that is less than 20% of traditional polyurethane foam, they are widely used in ultra-low (ULT) freezers, deep frozen shipping containers, and the aerospace industries.
Holds temperature for duration of 72 hours
Reusable and recyclable
Superior thermal protection in a convenient mid-size container
Great for shipping of high-value commercial & clinical trial products, research & development shipments, as well as pharmaceutical supplies
Year-round performance in extreme temperatures
Simplified ordering and inventory management
Cost-effective for single-use shipments
Great for projects requiring quick off the shelf solution for domestic expedited shipments or international shipments to both developed and undeveloped countries
Recommended SOP for Ai 2-8C and -25C thermal shipping box with PCM cold pads
Charging your PCM cold pads
2-8C: leave your PCM in a -18C freezer for 24 hours. Place PCM sideway, NOT upright, and leave 1 inch space between each PCM
-25C: leave your PCM in a -40C freezer for 24 hours. Place PCM sideway, NOT upright, and leave 1 inch space between each PCM
PCM is fully charged once the thermal fluid inside becomes solid
After removing from the freezer, leave PCM in room temperature for 15 minutes before use
Place one PCM in the bottom of the box, and then four PCM's alongside the inner walls of the box
Place your load into the box (empty space inside PCM will not affect duration)
Place your thermal data logger sensor, if required
Place the 6th PCM on top of your load
Close the VIP insulated cover and make sure it is tight
After 72 hours, replace all six PCM with new charged PCM
