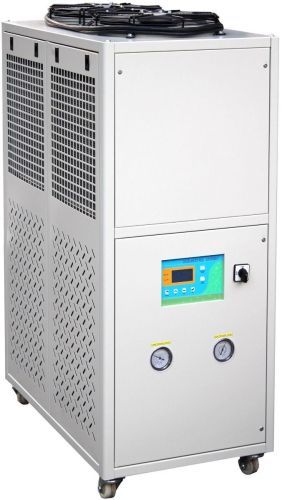

WAC-6 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit
1040 x 610 x 1370 mm / 1220 x 660 x 1520 mm (DxWxH)
Safety
Over current, compressor delay start, water pump over load, built-in fuse, over-voltage and under- voltage, abnormal operations, phase protection and
Working environment
Temperature range of chilled fluid: 5°C - 35°C. Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C. It is better to use the chiller while the ambient temperature is at or below 35°C
Recommended to use with these induction heaters (result may vary on different applications)
High frequency 20kW, 30kW, 40kW Mid frequency 35kW, 45kW Low frequency 35kW, 45kW
WAC-6 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
Manual Pressure Control Valve for 0 to 80 psi is an optional add-on, not standard with every unit
