Specifications
| Maximum Pressure | 6 tons |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 8 mm |
| Height | 69 mm (assembled without sample) |
| Sleeve Height | 39 mm |
| Sleeve Diameter (OD) | 30 mm |
| Tolerance | 0.01-0.02 mm (10-20 micron) |
| Max sample fill height | Not to exceed 1/3 of the sleeve height |
| Material | W18Cr4V hardened carbon tool steel |
Die set includes
- Two 8mm OD cylinderical core dies made of highly polished hardened steel
- One steel sleeve
- One steel support plate
- One push rod
- One pellet ejector
- One aluminum case
CAUTION
- Always wear protection goggles and gear during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 8 tons. Across International is not responsible for any damage caused by misuse.
SKU: SDS8
8mm Diameter ID Hardened Steel Dry Pressing Die Set
Configuration Summary
of options selected
Estimated Price:
Excl. Tax & Shipping
$309.00
Damaged Shipment Protection
30-Day Return Policy
1-Year Warranty
Have a question?
Ask our expert!

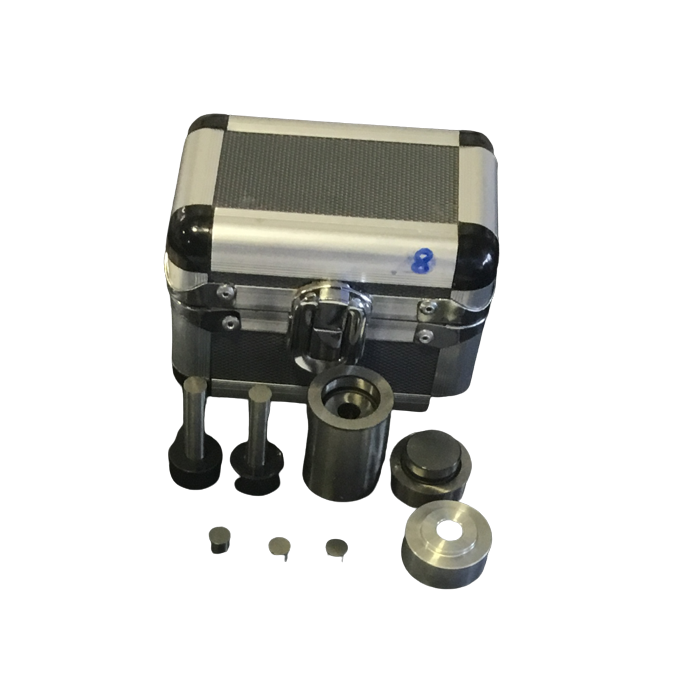

A set of 8mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 8mm diameter cylinder-shape pellets.
Die set includes
- Three 8mm OD cylinderical core dies made of highly polished hardened steel
- One steel sleeve
- One steel support plate
- Two push rod
- One pellet ejector
- One aluminum case
CAUTION
- Always wear protection goggles and gear during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 8 tons. Across International is not responsible for any damage caused by misuse.
Technical Details & Performance Parameters
| Maximum Pressure | 6 tons |
| Rockwell Hardness | Rc 62 |
| Diameter (ID) | 8 mm |
| Height | 69 mm (assembled without sample) |
| Sleeve Height | 39 mm |
| Sleeve Diameter (OD) | 30 mm |
| Tolerance | 0.01-0.02 mm (10-20 micron) |
| Max sample fill height | Not to exceed 1/3 of the sleeve height |
| Material | W18Cr4V hardened carbon tool steel |
Die set includes
- Two 8mm OD cylinderical core dies made of highly polished hardened steel
- One steel sleeve
- One steel support plate
- One push rod
- One pellet ejector
- One aluminum case
CAUTION
- Always wear protection goggles and gear during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 8 tons. Across International is not responsible for any damage caused by misuse.
