SKU: AI-2L-Feeder
2L Air-Tight Volumetric Powder Feeder with Built-in Agitator & Stainless Steel Hopper
Configuration Summary
of options selected
Estimated Price:
Excl. Tax & Shipping
$3,600.00
Damaged Shipment Protection
30-Day Return Policy
1-Year Warranty
Have a question?
Ask our expert!

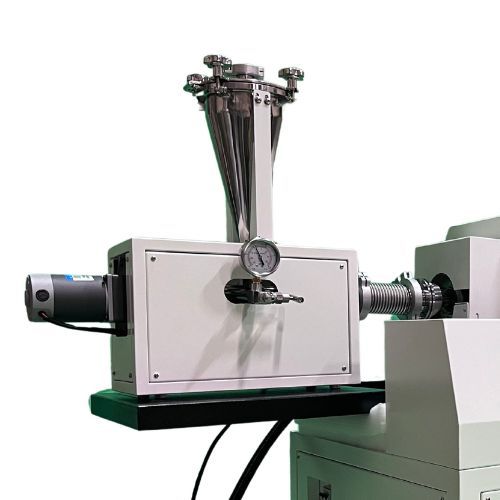

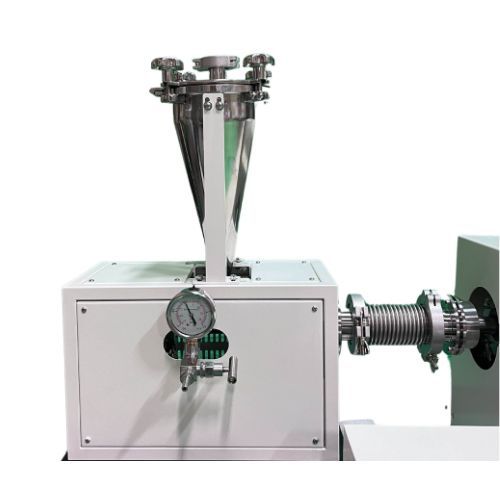

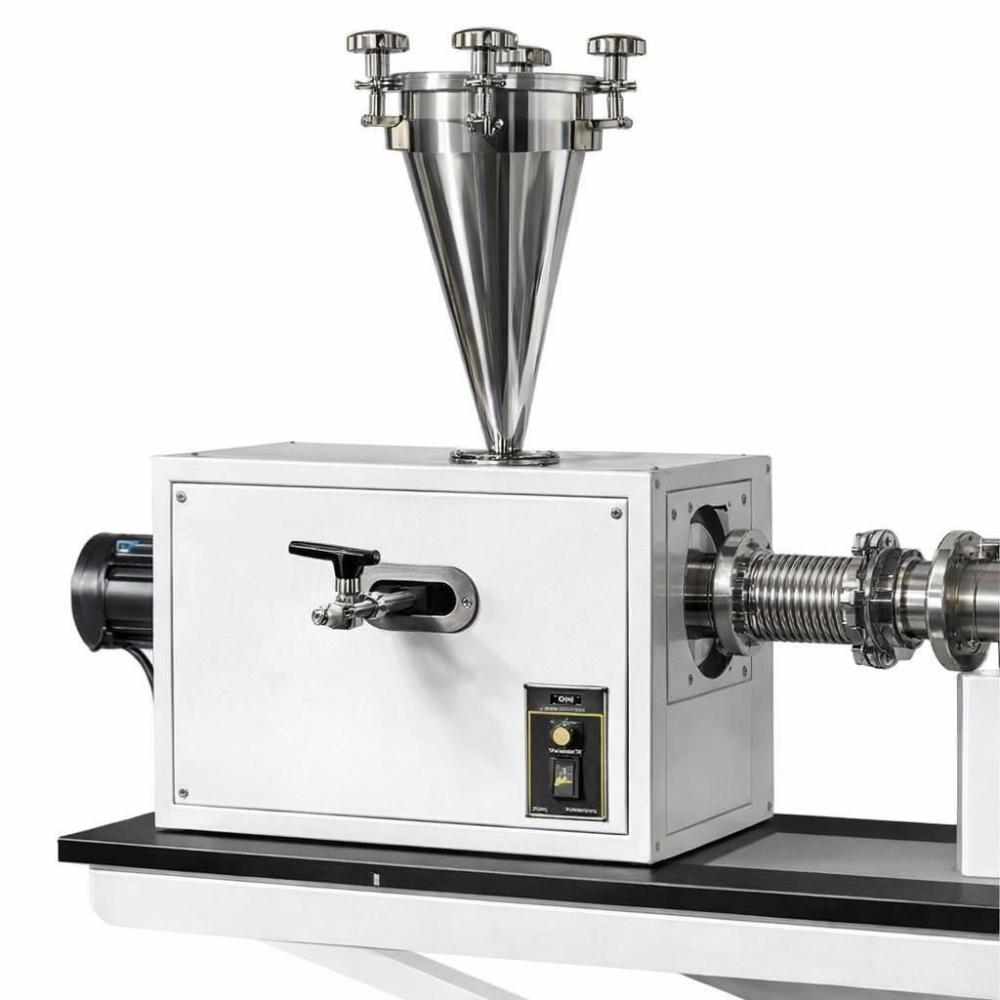

The AI-2L-Feeder is an air-tight automatic volumetric powder feeder designed for continuous, controlled delivery of solid powder into tube or rotary furnaces during firing and heat treatment processes. A motor-driven agitator combined with a built-in vibrator conditions the material to a uniform bulk density, ensuring consistent fill of the feed screw flights and preventing rat-holing, bridging, clogging, and material buildup.
Features
- Stainless steel hopper with integrated vibrator for consistent powder flow
- Feed rate continuously adjustable via potentiometer knob: 0–97 ml/min
- KF25 material delivery port for direct furnace connection
- Torque value: 4.45 N·m
- Maximum operating pressure: 1 psig
Power
- Input: Single Phase 208–240 VAC, 200W max
- Motor drive: 24 VDC
Dimensions: Hopper capacity: 2 liters
