Ai 10 Liter Short Path Complete Turn Key Package

10 Liter Short Path Complete Turn Key Package
Click To Enlarge
  • Item #: Clear10s
  * Marked fields are required.
Qty*
Price $13,700.00

The all new Ai 10 liter short path turnkey system offers you the best glassware and equipment in the market.

Ai Clear10 short path distillation kit features

  • Newly re-designed 5L distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
  • Ai Heavy wall glassware for durability
  • Vacuum jacketed vapor channel
  • Boiling flask to distillation port: 34/45 joint
  • Thermo port on boiling flask: 24/40 joint
  • Thermo port on distillation head: 14/20 joints
  • Recirculating fluid and vacuum connectors: GL-16 adapter and 3/8" hose barb
  • Glass material: high borosilicate glass 3.3
  • T1 cold traps prevent vapors being evacuated from entering a vacuum pump where they would condense and contaminate it

Warranty

One year warranty on DigiVac, DigiM mantle, Ai C20 chiller and SuperVac pump.

Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.





Clear10s Standard Package

 Part description

 Quantity

Part image

 DigiVac VPC Vapor Pressure Controller with real time analytics -110V 1 set
 DigiVac Bullseye precision vacuum gauge with real-time analytics 1 set
 Ai SuperVac 21 cfm, 0.3 micron, dual-stage, corrosion-resist pump with adjustable gas ballast and exhaust oil mist filter - 110V 1 set
 Ai C20 -20°C to 99°C 7L capacity recirculating chiller - 110V 1 set
 Ai DigiM10 10L digital heating & stirring mantle - 110V 1 set
 Ai T1 2L glass vacuum cold trap for safe vacuum operations 2 sets
 Ai 24/40 & 34/45 joints, heavy wall, vacuum jacketed, 5L distillation head with multiple sets of vigreux, cooling channel, and a 14/20 thermo port
2 pcs
 Ai heavy wall round bottom 3-neck 10L flask with one vertical 24/40 center neck and two vertical 34/45 side necks
1 pc
 PTFE 14/20 and 24/40 joint thermometer inlet adapters with Viton gaskets 3 pcs
 Ai 14/20 joint, pennyhead glass stopper 2 pcs
 Ai 24/40 joint, round-top glass feeding funnel
1 pc
 Ai 24/40 single cow adapter with PTFE valve and viton gasket
2 pcs
 Ai 24/40 joint, heavy wall 2000mL pear-shaped receiving flask 2 pcs
 Ai glass 3/8" hose barb tee adapter 3 pcs
 Ai glass 24/40 male to male adapter 1 pc
 Stainless steel keck clips, 24/40 x 2, 34/45 x 2 4 pcs
 24/40 joint, plastic keck clip
8 pcs
 Cork ring stand for 1L or 2L pear-shaped flasks
2 pcs
 6 x 6" stainless steel lab jack (min. height 3", max height 9.5")
2 pcs
 1/2" fiberglass insulating rope 30 ft
 PTFE 24/40 to KF25 flange adapter with viton r-ring 4 pcs
 KF25 3-way tee flange 1 pc
 Stainless steel KF25 to NPT adapter for Bullseye vacuum gauge 1 pc
 KF25 flexible stainless steel vacuum below 3.3 feet
3 pcs
 KF25 quick clamp and centering ring 8 sets
 KF25 3-way tee flange adapter 1 pc
 3/8" white premium food grade silicone vacuum tubing 20 ft
 Dow Corning high vacuum grease 5.3 oz 1 pc
 Traceable Kangaroo digital thermometer
2 pcs

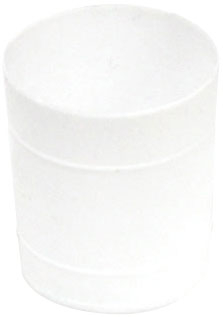

 PTFE joint seal (24/40 x 4, 34/45 x 2) 6 pcs
